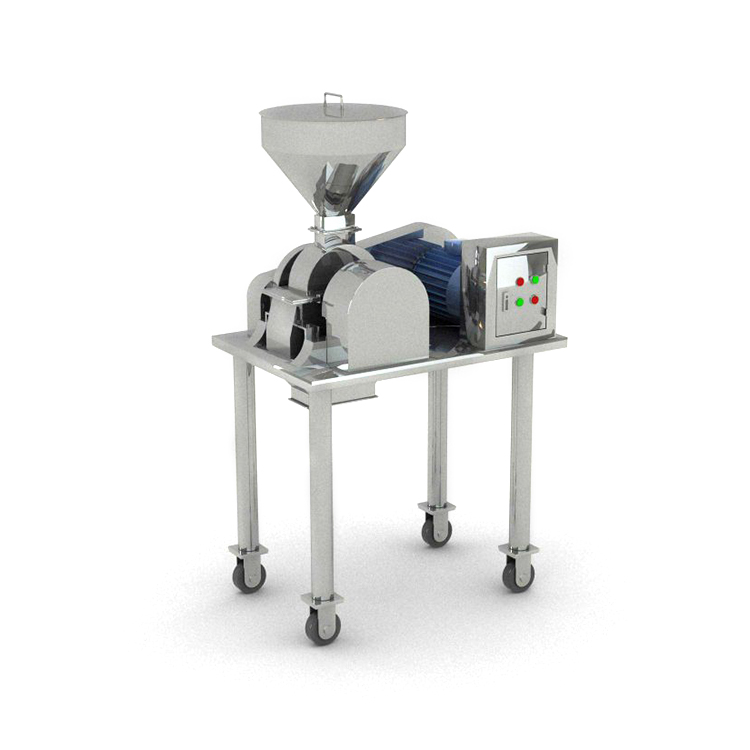

This machine is widely used in such trades as pharmaceutical, foodstuff and chemical etc.
Main Application:
This machine is widely used in such trades as pharmaceutical, foodstuff and chemical etc.
Working principle:
This machine is high speed running equipment, in which, material is crushed by cutting of high speed blade which is of a sharp edge on one side and an impact blade on the other side.
Blades of different sizes and shapes are available for choice according to different materials, and the particle size can be obtained through replacement of screen or adjustment of speed.
Features:
This machine is simple in structure, easy to assemble and clean the crushing chamber, and all parts contacting the material are made of stainless steel,acid and corrosion resistant, making
crushed material be in conformity with hygiene requirement. In addition, this machine has smooth operation, convenient move, low noise, good crushing effect and low power consumption.
| Model | Production Capacity | Fineness of finished product | Adjustable speed | Motor Power | overall dimension | weight |
|---|---|---|---|---|---|---|
| GFSJ-8A IV,V | 10-100kg/h | 12-120mesh | 2100-2800r/min | 3KW | 1050*600*1600mm | 150kg |
| GFSJ-16A IV,V | 50-300kg/h | 12-120mesh | 2100-2900r/min | 5.5KW | 1100*860*1520mm | 250kg |
| GFSJ-32A IV,V | 100-550kg/h | 12-120mesh | 2100-2900r/min | 11KW | 1280*950*1600mm |
320kg |
