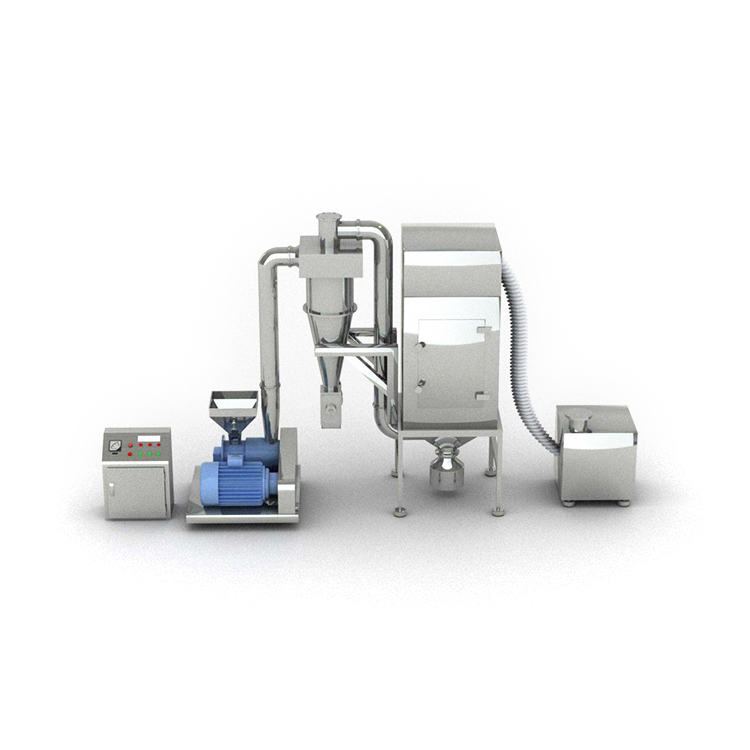

Home » Products » Fine crusher » YF Series Traditional Chinese Medicine Dust Collecting Crushing Set
The machine unit is suitable for such fields as pharmaceutical, food,chemical etc.. With no limit of viscosity, hardness, and fiber content of the material, it is functioned with air cooling, screen-free ,etc. It has good pulverization effect to any material, especially suitable for fiberous Chinese herbs or oily materials.
Main Application:
The machine unit is suitable for such fields as pharmaceutical, food,chemical etc.. With no limit of viscosity, hardness, and fiber content of the material, it is functioned with air cooling, screen-free ,etc. It has good
pulverization effect to any material, especially suitable for fiberous Chinese herbs or oily materials.
Working principle:
The machine unit is made up of hopper,classifier wheel, stepped gear, pulverizing knife, gear ring, pulverizing motor, discharging port, fan blade, collecting box, vacuum box etc., The material is fed into the pulverizing
room through the charging bucket, and pulverized by knife with high rotation. The fineness of the material is controlled by the adjustment of the gap between stepped gear and stepped pan. (The well processed material
is suctioned from the pulverizing room to the hoppocket in the aggregating box by fan blade with high rotation, while the half-processed material will remain to be pulverized in the pulverizing room.) The dust in the hop
pocket is collected by the dust collection box. The machine unit is designed according to GMP standard. It is featured with simple structure, convenient operation and cleaning, low noise, and high output. The machine is
made of stainless steel with high quality. There is no dust during the pulverizing.
Model
Production Capacity
Feeding Size
Crushing Fineness
Crushing motor
Dust collecting motor
Output motor
overall dimension
weight
YF-130A
5-30kg/h
≤5mm
20-200mesh
1.5kw
1.5kw
0.75w
1500*650*1500mm
250kg
YF-300A
30-300kg/h
≤10mm
20-200mesh
11kw
3kw
0.75kw
4000*850*2350mm
850kg
YF-500A
60-500kg/h
≤12mm
20-200mesh
22kw
5.5kw
0.75kw
4900*950*2350mm
1200kg
YF-600A
80-800kg/h
≤15mm
20-200mesh
37kw
11kw
0.75kw
5500*950*2500mm
2500kg
