Home » Products » Fine crusher » WF Series Dust Collecting Fine Crusher set

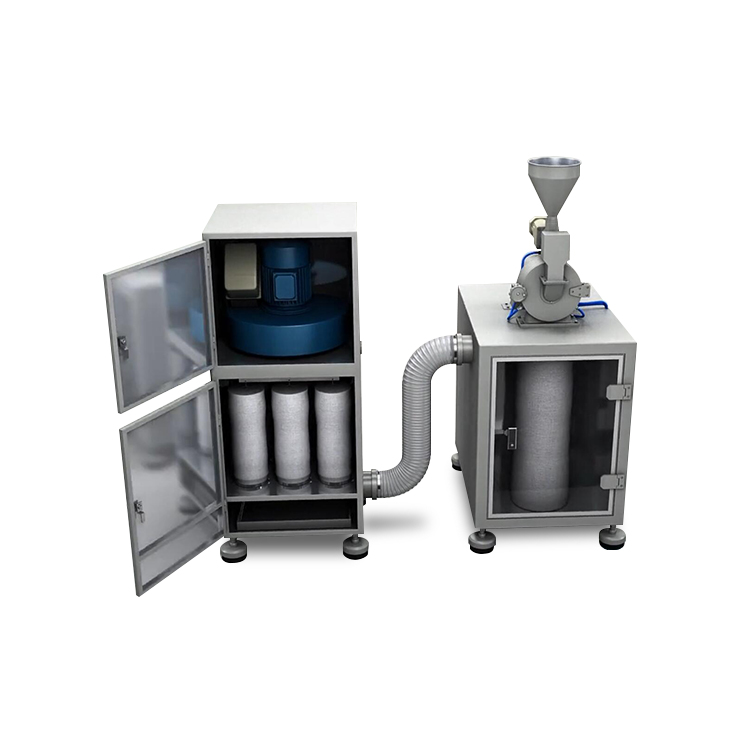

Applied for such trades as pharmaceutical, chemical and foodstuff ect., This machine is a new generation fine crushing equipment combining crushing and dust collection as a whole.
Main Application:
Applied for such trades as pharmaceutical, chemical and foodstuff ect., This machine is a new generation fine crushing equipment combining crushing and dust collection as a whole.
Working principle:
This machine is a hammer typed crusher with high speed. The material is fed into the crushing chamber through a hopper by a conveyor and crushed by high speed rotating hammer.
The crushed material is enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by the dust collector through a bag.
Designed according to “GMP” standard and wholly made of stainless steel, this machine has no flying dust during production. And can improve the utilization rate of material and reduce
the cost of enterprise, thus reaching the international advanced level.
Model
Production Capacity
Feeding Size
Crushing Fineness
Crushing motor
Feeding motor
Dust collecting motor
Fine Crusher Overall dimension
Dust Collecting Overall dimension
weight
WF–180B
30-80kg/h
≤1mm
80-400mesh
2.2kw
0.18kw
1.5kw
850x600x1350mm
550*550*1350mm
320kg
WF-320B
100-300kg/h
≤5mm
80-400mesh
11kw
0.18kw
1.5kw
1150x550x1350mm
600*550*1350mm
450kg
