Home » Products » Fine crusher » YGJ Series Roller Mill

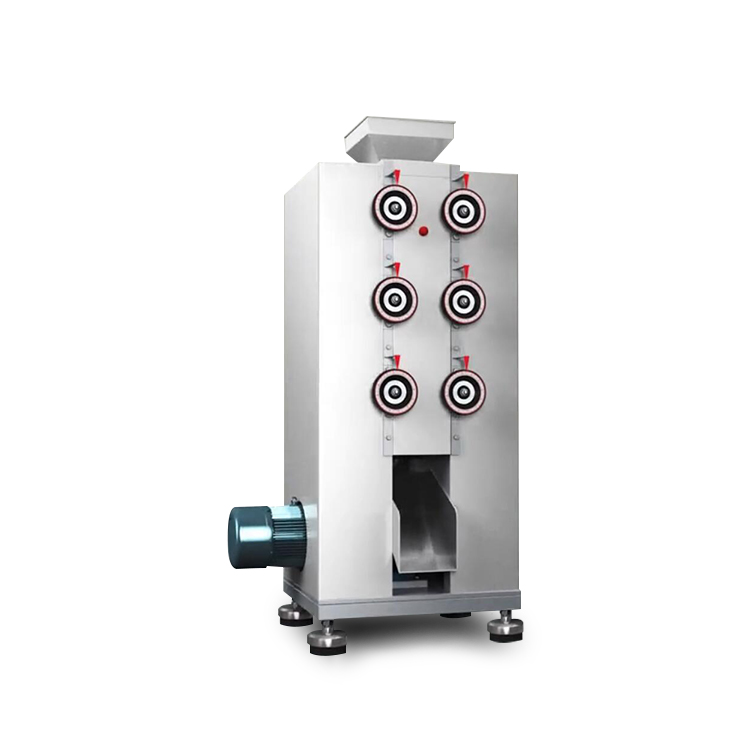

The machine is used to grind the materials which have oil such as sesame, peanut and almond. The machine is well designed and developed by our company, it is filled a gap in the oil mill, which had reached the international advanced level.
Main Application:
The machine is used to grind the materials which have oil such as sesame, peanut and almond. The machine is well designed and developed by our company, it is filled a gap in the oil mill,
which had reached the international advanced level.
Working principle:
The raw materials are feed into the roller area from hopper, they are milled into powder by the squeezed of the rollers. You can get different sizes of final production by adjusting the distance
of two rollers. The machine is easy to operate with low noise and high capacity which is the best mill for oil materials.
Model
Prdouction Capacity
Crushing Fineness
Motor Power
overall dimension
weight
YGJ1-100
20-80 kg/h
8-20 mesh
0.75 kw
500*500*890 mm
250 kg
YGJ2-100
20-80 kg/h
8-40 mesh
1.5 kw
500*500*1130 mm
300 kg
YGJ3-100
20-80 kg/h
8-60 mesh
2.2 kw
500*500*1370 mm
350 kg
YGJ4-100
20-80 kg/h
8-80 mesh
3 kw
500*500*1610 mm
400 kg
YGJ1-150
50-200 kg/h
8-20 mesh
2.2 kw
720*520*920 mm
500 kg
YGJ2-150
50-200 kg/h
8-40 mesh
3 kw
720*520*1160 mm
550 kg
YGJ3-150
50-200 kg/h
8-60 mesh
4 kw
720*520*1160 mm
600 kg
YGJ4-150
50-200 kg/h
8-80 mesh
5.5 kw
720*520*1640 mm
650 kg
YGJ1-300
100-500 kg/h
8-20 mesh
3 kw
920*700*1200 mm
760 kg
YGJ2-300
100-500 kg/h
8-40 mesh
4 kw
920*700*1480 mm
940 kg
YGJ3-300
100-500 kg/h
8-60 mesh
7.5 kw
920*700*1760 mm
1120 kg
YGJ4-300
100-500 kg/h
8-80mesh
7.5 kw
900*700*2060 mm
1300 kg
YGJ1-500
200-1000 kg/h
8-20 mesh
5.5 kw
1100*730*1220 mm
950 kg
YGJ2-500
200-1000 kg/h
8-40 mesh
7.5 kw
1100*730*1480 mm
1250 kg
YGJ3-500
200-1000 kg/h
8-60 mesh
11 kw
1100*730*1820 mm
1550 kg
YGJ4-500
200-1000 kg/h
8-80 mesh
11 kw
1100*730*2120 mm
1850 kg
