Feature

u The main transmission part is adopted with swinging pin-wheel, long life, lower noise, and stable running

u Adjustable stroke can be suitable for various packaging, especially ofr the production requirements of small batch and various kinds of products

u Flat plate structure, can pack some special shaped prodducts, such as elliptic shape, square shape, triangle shape etc

u PVC and Alu Foil adopt motor transportation, sensor control, transportation steady

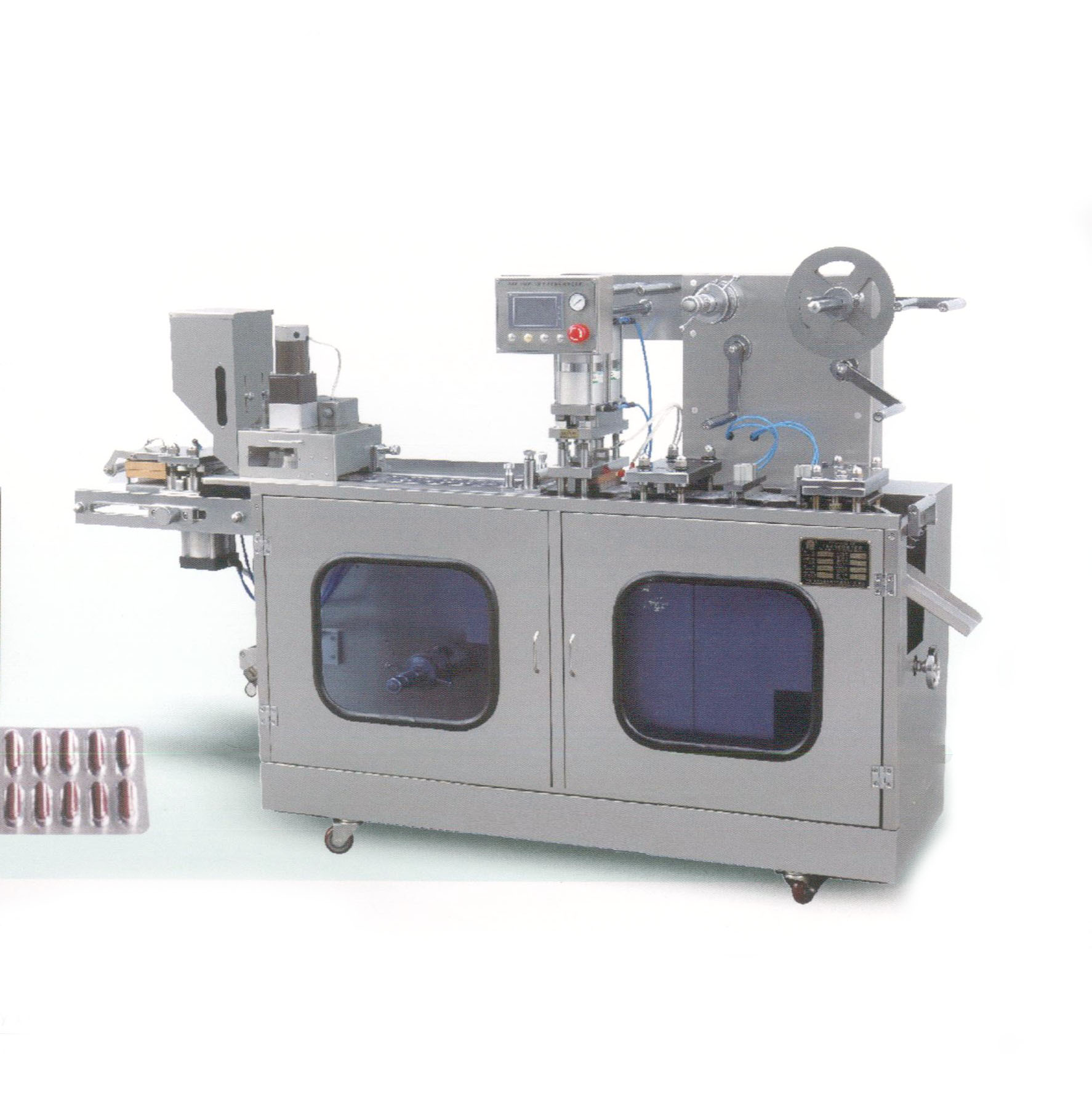

u 140B-I model machine is suitable for ALU/PVC and ALU/ALU,equipped with special feeder,automatic rejection device

Main technical parameter

u Cutting frequency (times/min) :6-36

u Capacity(10 thousand pcs/h):2-11

u Max.forming area and depth (mm):140*110*14

u Stroke:40-120mm(can be manufactured as user's requirements)

u Standard plate:80*57mm(can be manufactured as user's requirements)

u Air pressure:0.4-0.6MPa

u Air supply:≥0.2m3/min

u Total power:380V/220V 50Hz 3.6Kw

u Main motor power:1.1Kw

u PVC hard pieces (mm):0.15-0.5*155

u PTP Aluminum Foil (mm):0.02-0.035*155

u Dialysis paper (mm):50-100g*155

u Mould cooling:tap water or recycling water

u Machine overall size:2300*500*1410mm

u Machine Weight:600kg
