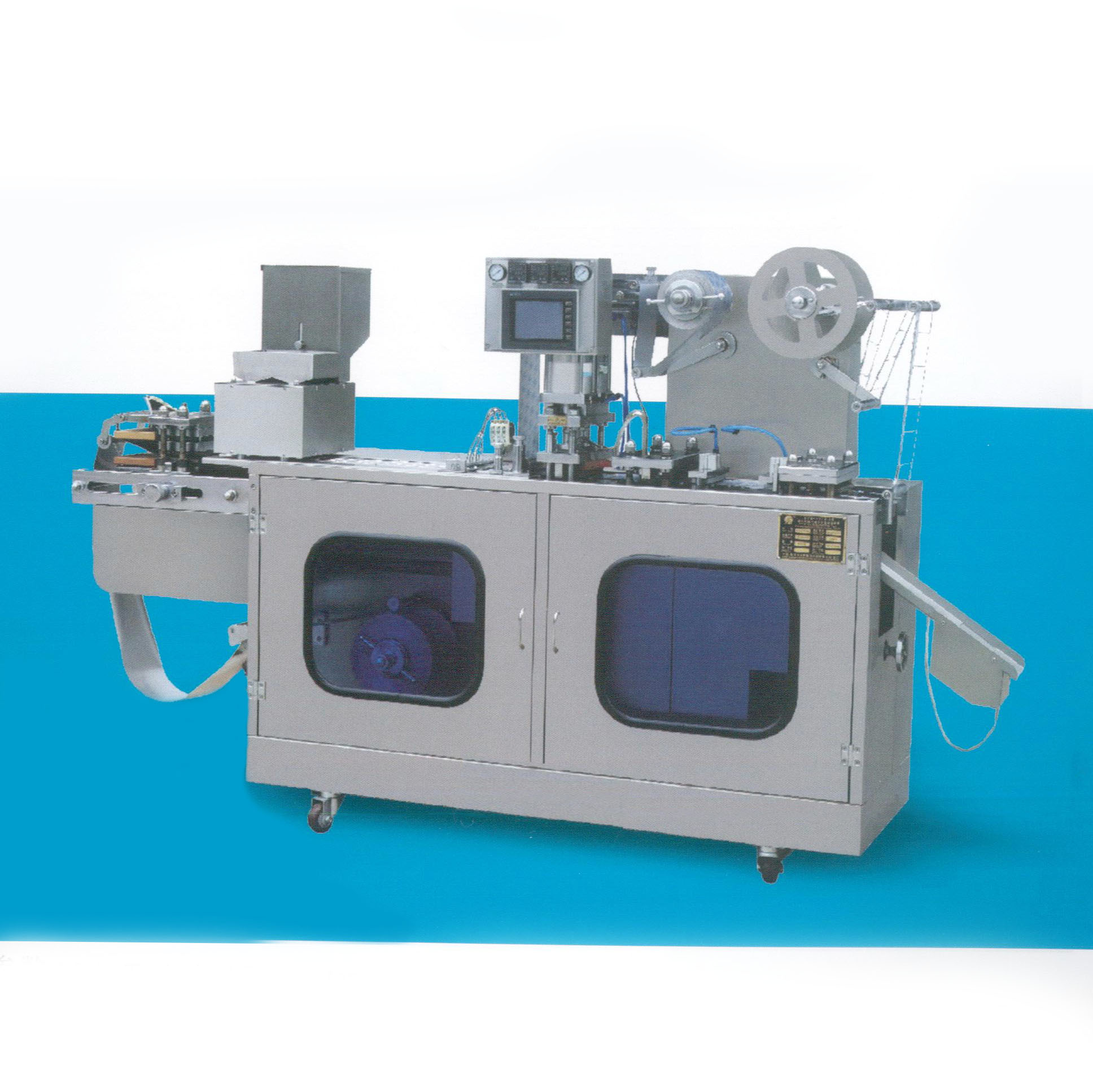

Home » Products » Blister Packing Machine » DPB-140B-I Alu/Alu Blister Packaging Machine
Feature
u The main transmission part is adopted with swinging pin-wheel, long life, lower noise, and stable running
u Adjustable stroke can be suitable for various packaging, especially ofr the production requirements of small batch and various kinds of products
u Flat plate structure, can pack some special shaped prodducts, such as elliptic shape, square shape, triangle shape etc
u PVC and Alu Foil adopt motor transportation, sensor control, transportation steady
u 140B-I model machine is suitable for ALU/PVC and ALU/ALU,equipped with special feeder,automatic rejection device
Main technical parameter
u Cutting frequency (times/min) :Hardness aluminum 6-35 AL-plastic and paper-plastic 6-40
u Capacity(10 thousand pcs/h):AL-AL≤4.5 AL-plastic≤11
u Max.forming area and depth (mm):AI-AI 140*110*9 AI-plastic 140*110*14
u Stroke:40-120mm(can be manufactured as user's requirements)
u Standard plate:80*57mm(can be manufactured as user's requirements)
u Air pressure:0.4-0.6MPa
u Air supply:≥0.2m3/min
u Total power:380V/220V 50Hz 3.6Kw
u Main motor power:1.1Kw
u Forming Aluminum (mm):0.085-0.1*150
u PVC hard pieces (mm):0.15-0.5*150
u PTP Aluminum Foil (mm):0.02-0.035*150
u Dialysis paper (mm):50-100g*150
u Mould cooling:tap water or recycling water
u Machine overall size:2300*500*1410mm
u Machine Weight:600kg
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
It is a kind of high-tech quality product which is designed and produced on the basis of the comparison with the same type machines by our technicians, especially suitable for the packaging requirements of avoiding moistrure and light, sealing in tropical area and moist area.This machine can be used in three functions including AL/PL/AL, AL/PL, and AL/PL. It is ideal multiple-purpose equipment.
Learn More
This advanced high-tech XSJ Series Fish Food Blister Packaging Machine is innovated with success to meet the needs in the market by our own research, fellows. It's mainly suitable for packing red worms(akamushi), eelworm, artemia. baby shrimp etc. have been patented by the state patent administration. Its patent number is 200610008264.77. This machine has two models, model 250 and model 140. It is integrated mechanic, electric, pneumatic technologies. All the operations are controlled through signals sent off by the sensor switches. It's equipped with PLC program, simplifying the construction, making the blister locking synchronize with it to achieve the feeding the pet fish food. The packed food won't be destroyed in its cells and nutrients, and the products won't be deteriorated in the fridge at 18 below zero for within two years, which can keep the proteins and vitamins in the food from losing, keeping its sound performance of returning to water.
Learn More
This machine integrated with hard ALU(PVC) forming, Automatic Feeding, PTP sealing, batch number printing,perforation,cutting, waste winding. It conforms to "GMP" requirement, suitable for ALU/ALU, ALU/PVC, PVC/Paper package.
Learn More
This packaging machine was irinovatively developed by our own company. It is suitable for packaging chocolates, butter, biscuits, lollipop, can dy, cleani ng solution, perfume, esse nee, facemasks etc with AL/PL materials, not standard machin巳 can make special as per customer's requestintegrated with PVC forming, Automatic Feedi ng PTP sealing, batch nu mber p「in ting, perforation, cutti ng, waste win ding. It confomns to "GMP" requirement.
Learn More
