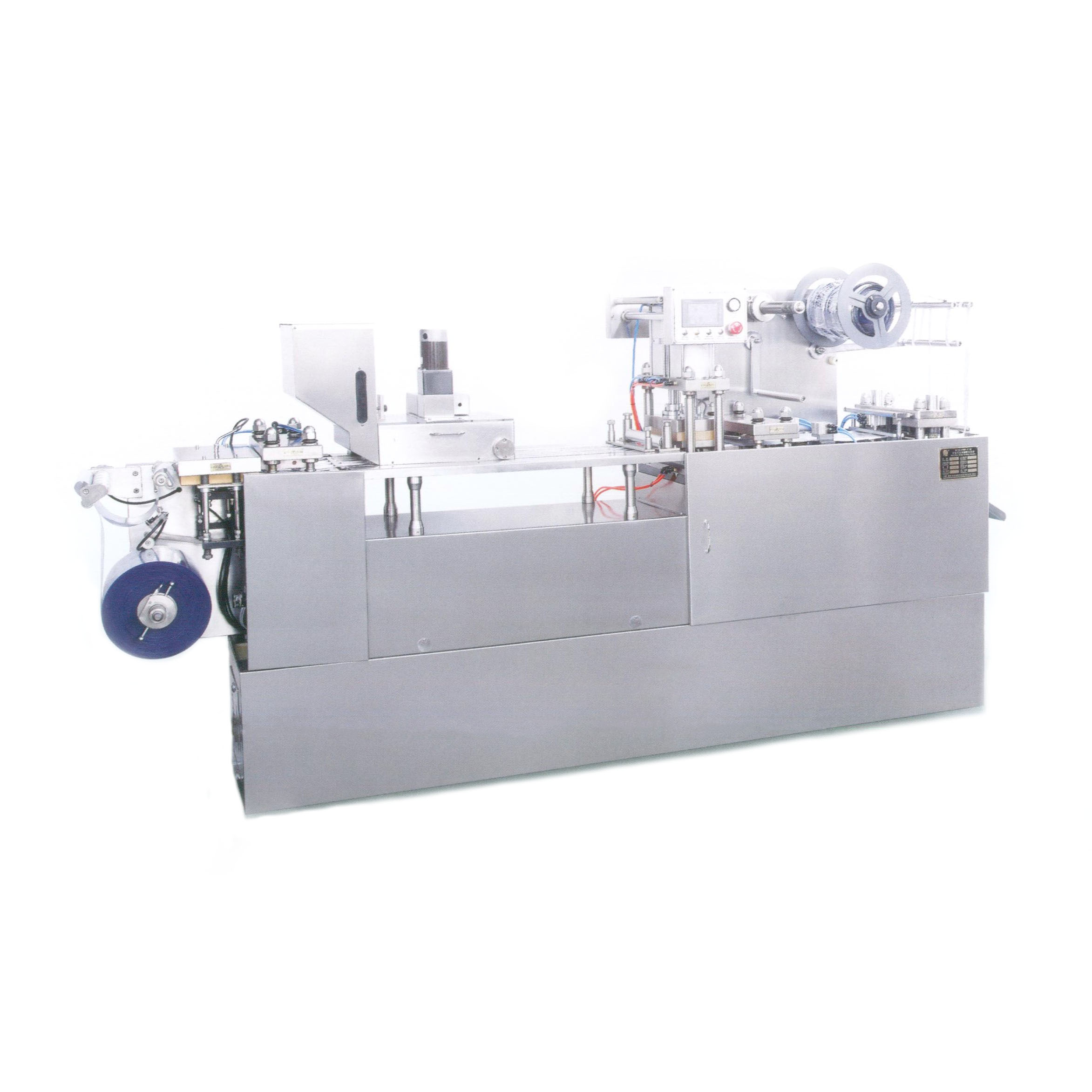

Home » Products » Blister Packing Machine » DPB-250E-I/III Flat Plate Blister Packaging Machine

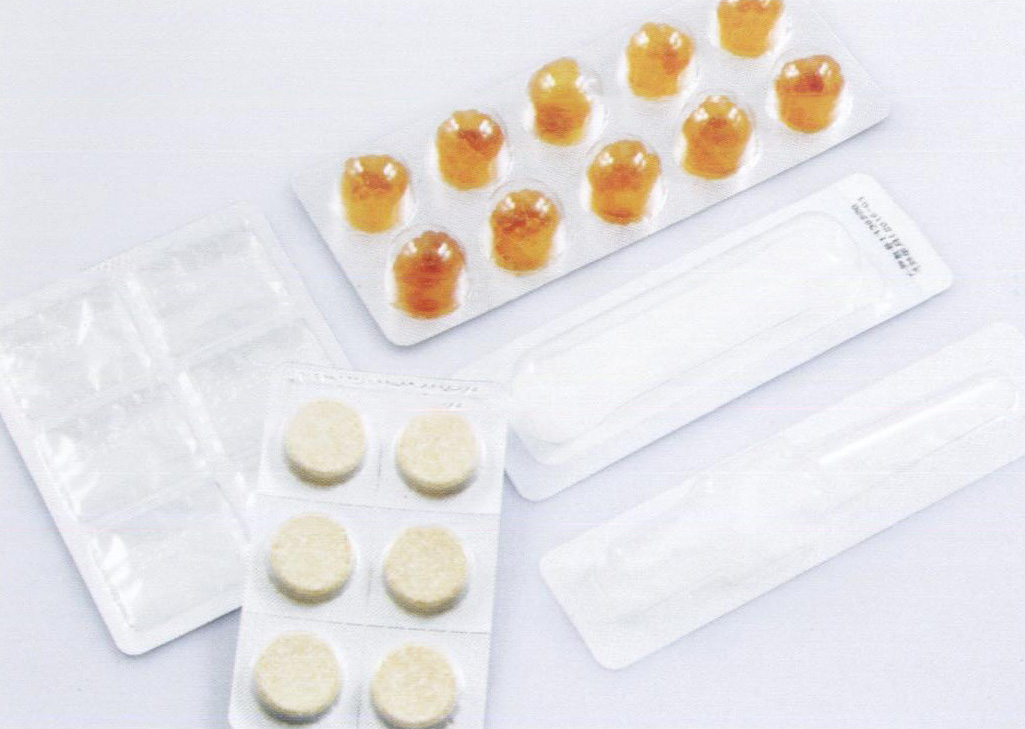

This machine issuitable for capsule, tablet honey pill, candy, one injector and irregular-shaped AL/PL, Paper/Plastic packing in pharmacy, food, electronics, medical equipment industry etc. This machine adopted with micro-computer PLC, can choose computer panel or touch screen operation, frequency Speed regulation,easy operation, it is an ideal packaging equipment at present.
Feature
u Heat-sealing station fixed, it can freely adjusted distance in the same flat surface for forming, perforation and cutter etc parts. It is suitable for various sizes of medicine package, and it has high presision and good suitability.
u Adjustable stroke, automatic feeding, register heating, positive pressure forming,up and down net web, cylinder heat-sealing, automatic perforation and printing batch number, mechanical dragging,easy operation, stability of working.
u It is adopted with imported gear reducer with lower noise and long life.
u Mould pressing plate orientation, register correction and convenience of replacement.
u Computer Panel and touch screen for your choice, easy operation.
Main technical parameter
u Cutting frequency:6-50times/min
u Capacity(10 thousand pcs/h):3.5-23
u Max.forming area:240*150*14(26)mm
u Stroke:40-160mm(can be manufactured as user's requirements)
u Standard plate:80*57mm(can be manufactured as user's requirements)
u Air pressure:0.4-0.6MPa
u Air supply:≥0.3m3/min
u Total power:380V/220V 50Hz 6.2Kw
u Main motor power:1.5Kw
u PVC hard pieces:0.15-0.5*260mm
u PTP aluminum foil:0.02-0.035*260mm
u Dialysis paper:50-100g*260mm
u Mould cooling:tap water or recycling water
u Machine overall size:3100*600*1650mm
u Machine Weight:1600kg
