Home » Products » Liquid Filler » AV Automatic viscosity filling machine

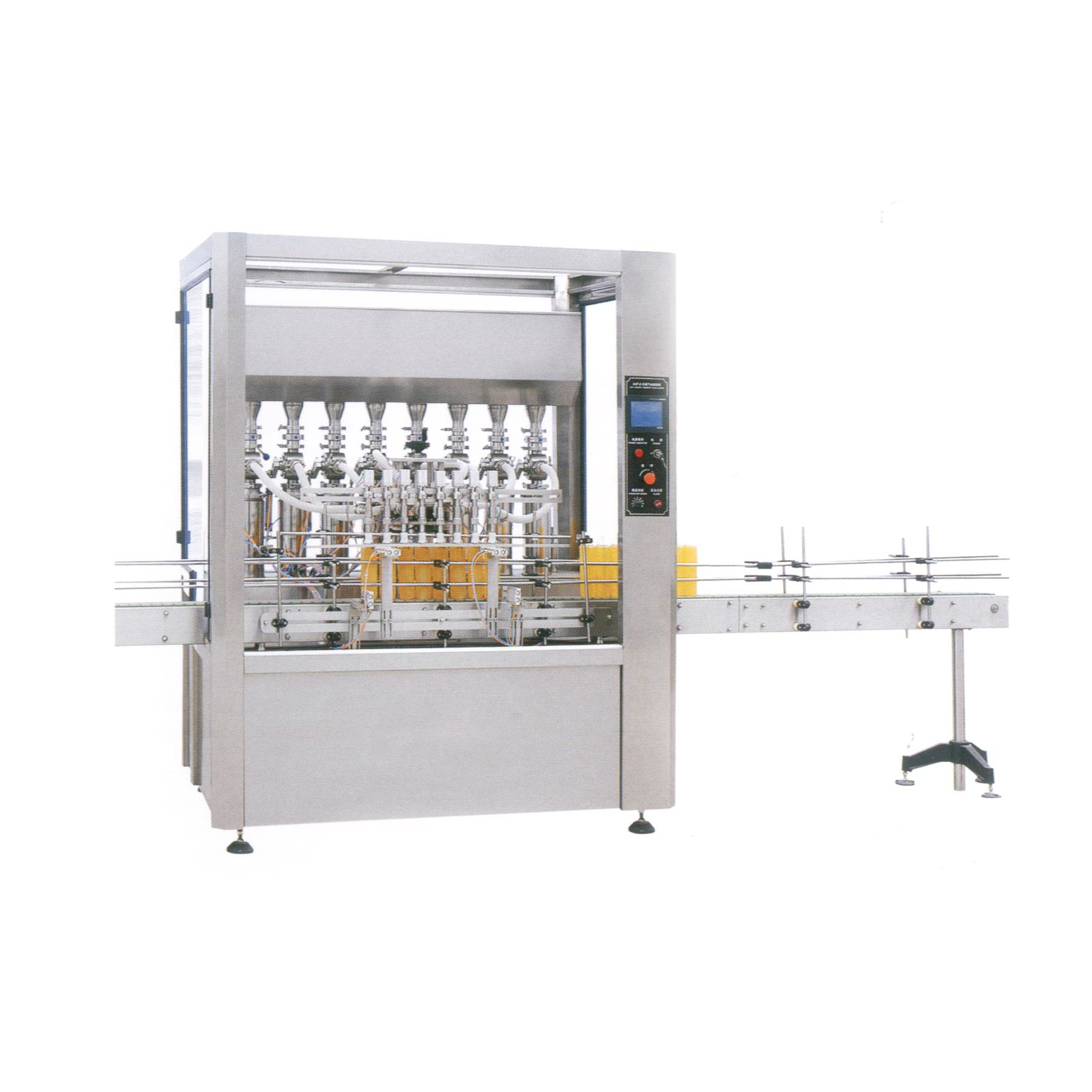

AV Automatic Viscosity Filling Machine is applied for filling glue, liquid soap, shampoo and cream etc. In the industry of pharmaceutical and chemical. It complete and stable for filling heavy liquid and viscosity in the marketplace.
Feature
u Adopt volumetric piston pump, pneumatic control SS check valve to fill various kinds of liquid from light to medium heavy
u Pneumatic control piston pump, easy adjust filling volume
u Top liquid hopper application, with auto level sensor to control stuff supply and stop
u Auto shut on/off filling nozzle, prevent drop while filling
u Convenient to take out componet parts to clean and sterilize, adjust to fit to other bottle size with no change parts
u Frequency inverter speed control, no bottle no fill intelligence
u All electrical elements adopt Mitsubishi, Schneider brand
u Whole machine designed and manufactured accordance to GMP regulation
Main technical parameters
|
Items |
AVF-4 |
AVF-6 |
AVF-8 |
AVF-12 |
AVF-16 |
|
Filling nozzles |
4 |
6 |
8 |
12 |
16 |
|
Filling range |
20-5000ml |
20-500ml |
|||
|
Ideal filling range |
20-100ml/50-250ml/100-500ml/200-1000ml/500-2500ml/1000-5000ml |
||||
|
Filling speed(100ml)bpm |
30-40bpm |
40-50bpm |
50-70bpm |
70-100bpm |
90-120bpm |
|
Filling precision |
20-1000ml:≤±1% 1000-5000ml:≤±0.5% |
||||
|
Air pressure range |
0.4 - 0.6MPa |
||||
|
Air consumption |
10m3/h |
15m3/h |
20m3/h |
30m3/h |
40m3/h |
|
Power supply |
220V 50/60Hz |
||||
|
Power consumption |
0.75Kw |
0.75Kw |
1.2Kw |
2.2Kw |
2.2Kw |
|
Single machine noise |
≤50Db |
||||
|
Net weight |
550Kg |
900Kg |
1150Kg |
1500Kg |
1750Kg |
|
Overall dimension(mm) |
1300*1200*1800 |
1600*1200*1800 |
1900*1200*1800 |
2300*1200*1800 |
2600*1200*1800 |
