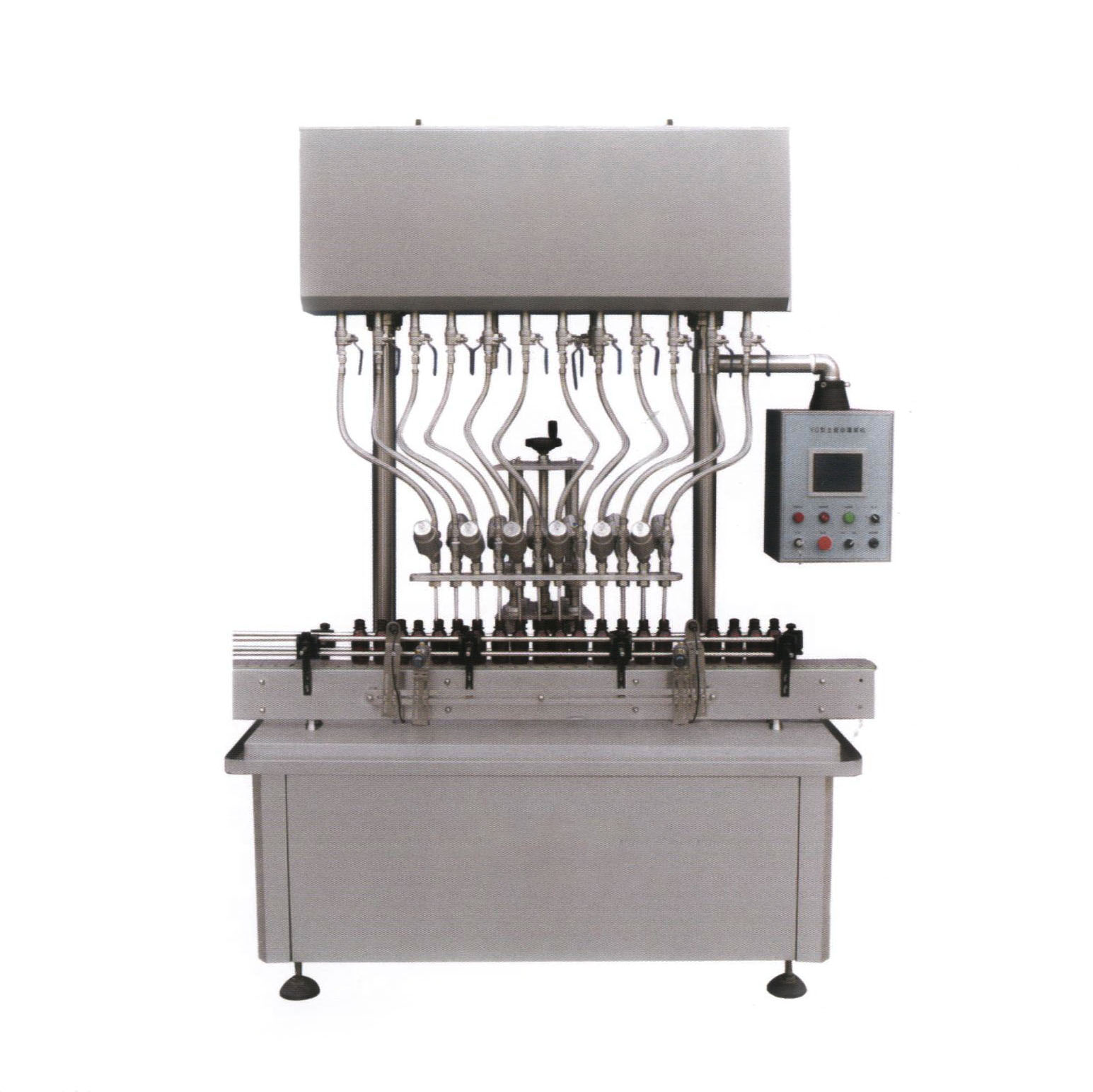

AGF automatic gravity liquid filling machine adopt logic controller PLC, 6" LCD touch screen system, ordinary pressure flow passage parameters, set the flowing time to control different quantify. It applys to pharmaceutical, foodstuff, pesticide, chemical, etc.
Feature
u Man-machine English-Chinese interface, interface, intelligent contact screen, human design, easy operation
u Imported filling valve, avoiding drop leaking, accurate filling quantity
u Program logic conrroller (PLC) , easy for changing size or modifying parameters
u Pneumatic elements are all imported, stability and reliability
u Accurate liquid sensing, automatically adding liquid, ordinary pressure flow passage parameters
u Solely and specially-designed whole lifting device, easy governing to meet the needs of all kingd of container packing
u Pholo-electric sensing and pneumatic linking control, automatic protection for shortage of bottles
u Pneumatic cxecutive conitol valve. High efficiency and safety. Each flow pazsage can be separately governed and cleaned

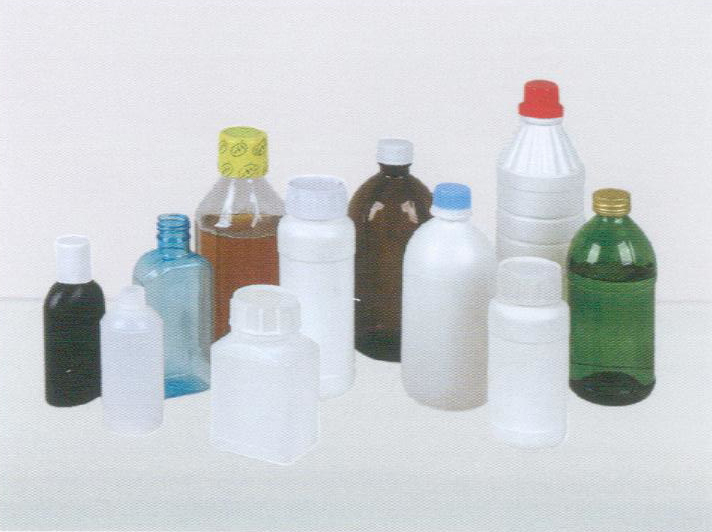

u Close positioning design, easy governing, suitable for packing of all sizes of bottles
u The whole machine is designed according to requirements of GMP
Main technical parameters
|
Items |
AGF-8 |
AGF-12 |
AGF-16 |
AGF-20 |
|
Filling nozzles |
8 |
12 |
16 |
20 |
|
Ideal filling range |
20-100ml/50-250ml/100-500ml/200-1000ml/500-2500ml/1000-5000ml |
|||
|
Filling speed(100ml)bpm |
40-60bpm |
60-80bpm |
70-90bpm |
80-100bpm |
|
Filling precision |
20-1000ml:≤±2% 1000-5000ml:≤±1% |
|||
|
Air pressure range |
0.4 - 0.6MPa |
|||
|
Power supply |
220V 50/60Hz |
|||
|
Power consumption |
0.5Kw |
0.5Kw |
0.75Kw |
0.75Kw |
|
Single machine noise |
≤50Db |
|||
|
Net weight |
560Kg |
600Kg |
700Kg |
800Kg |
|
Overall dimension(mm) |
1800*800*2500 |
2000*800*2500 |
2200*800*2500 |
2400*1200 |
|
2500 |
|
|
|
|
