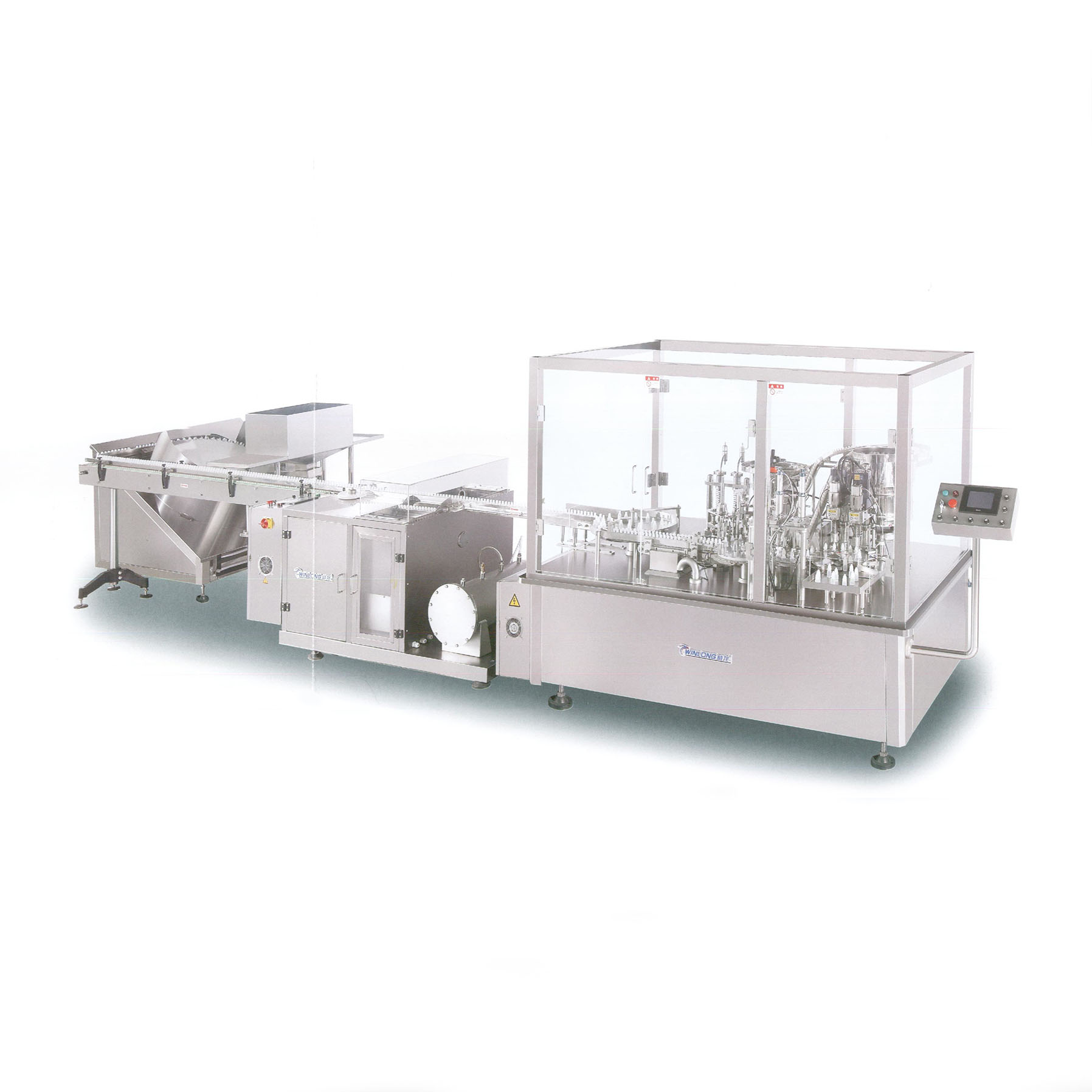

YG4/2/2-100 Eyedrop Aseptic Filling Production Line

The prooduction line of the eye drops is mainly to the completion of the eye drops bottle Unscrambler,bottle conveying, air wash, metering packaging, plus stuffed inside and outside screw etc processed.

online service

Email: truna2001@163.com

PDF Download

Inquiry

The previous

No next

Product description

System components

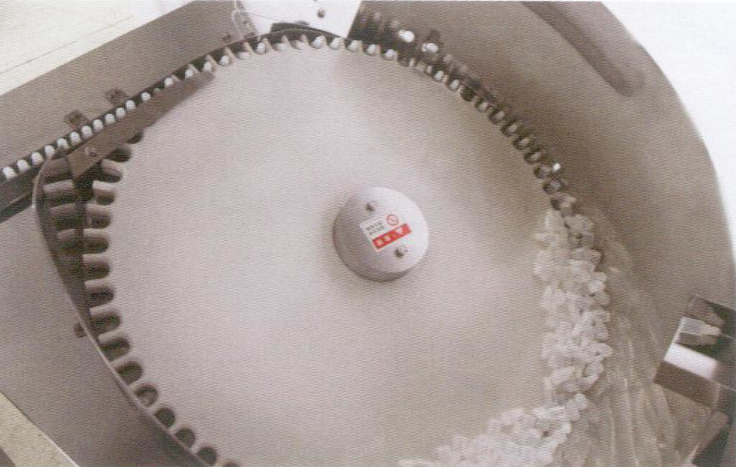

Store quantities of bottles, automatic unscrambling system

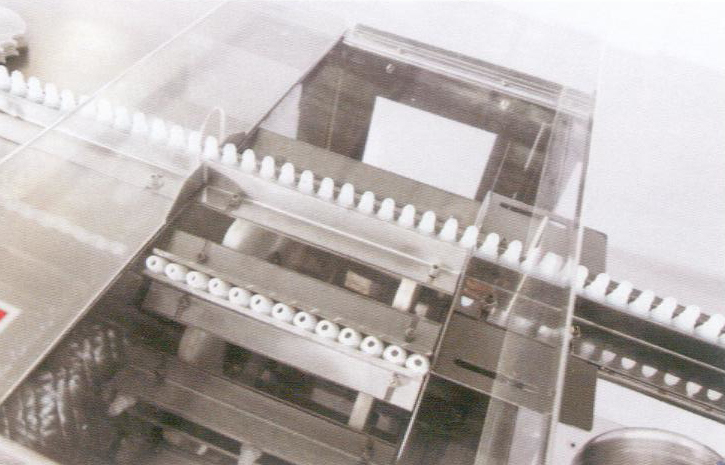

Convoy bottle, reject inverted bottle system
Static elimination, air washing
Precision Ceramics, bottle indexing system
Vacuum pick and auto place system
Constant magnetic torque, positioning capping system
Aseptic laminar flow protection system
Altemative peristaltic pump system instead of ceramic pump

Main technical parameter

Bottle used	5-30ml plastic bottle
Production capacity	90-120bpm
Filling nozzles	4
Bottle air washing heads	12
Plug placing heads	2
Capping heads	2
Filling precision	≤±1%
Qualified bottle air washing	100%
Qualified plug placing	≥99.8%
Qualified cap screwing	≥99.8%
Compressed air required	10m3/h 0.6-0.8MPa
Total power	≤5KW 380V(220V) 50HZ
Net weight	3000KG
Overall dimension	678023802000(Exclude LAF)
