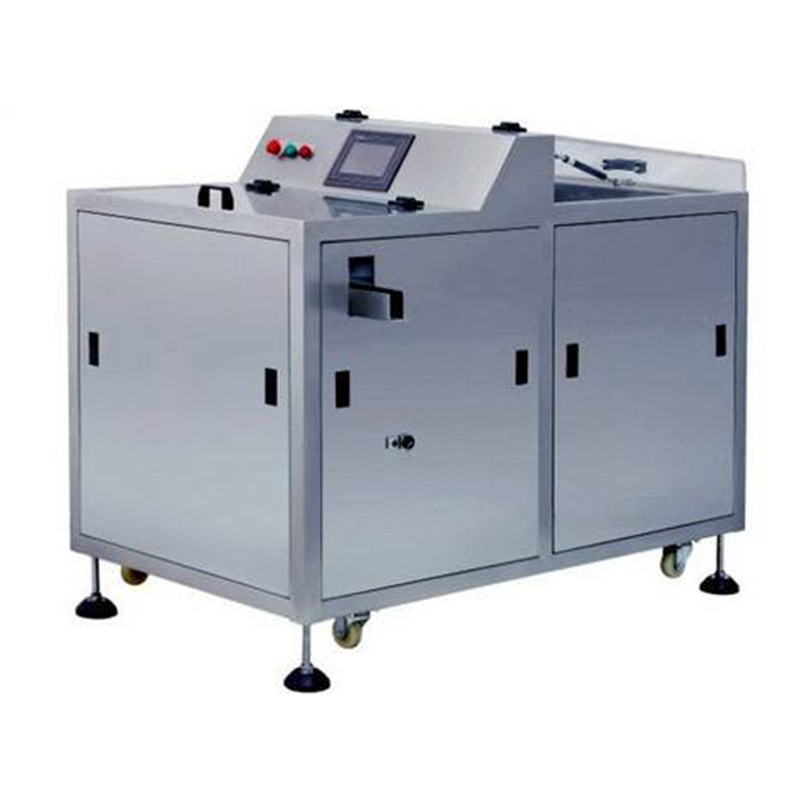

Home » Products » Liquid Filler » MDLP-G 全自動高速理瓶機
MDLP-系列高速理瓶機專業用于不同尺寸的塑料瓶理瓶,根據不同尺寸的塑料瓶子,可以通過更換模具實現。理瓶速度最快可以達到200瓶每分鐘
MDLP-系列高速理瓶機專業用于不同尺寸的塑料瓶理瓶,根據不同尺寸的塑料瓶子,可以通過更換模具實現。理瓶速度最快可以達到200瓶每分鐘。
本產品采用全封閉式理瓶,無塵,無污染,完全符合GMP生產要求。
主要特點:
1.全封閉式理瓶
2.可采用觸摸屏PLC控制
3.大型投料料斗,操作人員可將物料隨意倒入投料料斗,料斗中由輸送裝置,根據實際情況將空瓶輸送到理瓶機構。
4.物料接觸部分圈不銹鋼304制作,可定制316L材質。
5.采用聚四氟乙烯為理瓶轉盤,整潔,衛生,美觀。
6.理瓶速度采用變頻控制。
7.提供符合藥廠驗證標準的4Q文件及FAT/SAT文件。
主要技術參數:
Size of bottles: 瓶子尺寸 |
20-300 ml |
Output: 產量 |
40-200 bottles/min (dependent on the size and shape of bottles) |
Power supply: 電壓 |
220V 60Hz |
Power: 總功率 |
0.15KW |
Overall dimension: 外形尺寸 |
950×950×1110mm |
