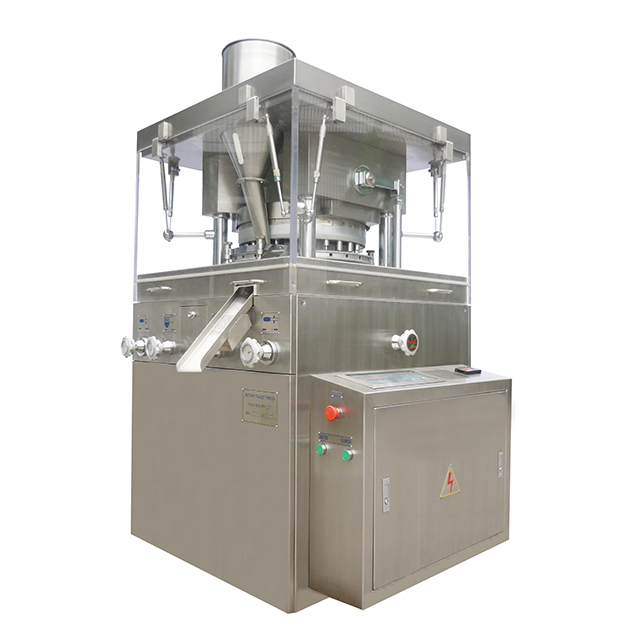

The machine is a single press type,continuous automatic tablet press machine for pressing granular raw materials into tablets.Rotary tablet press is mainly used in pharmaceutical,chemical,food electronic, plastic and metallurgical industries.Machine for precision machined stainless steel made of aluminum alloy bracket for the upper and lower independent
Features:

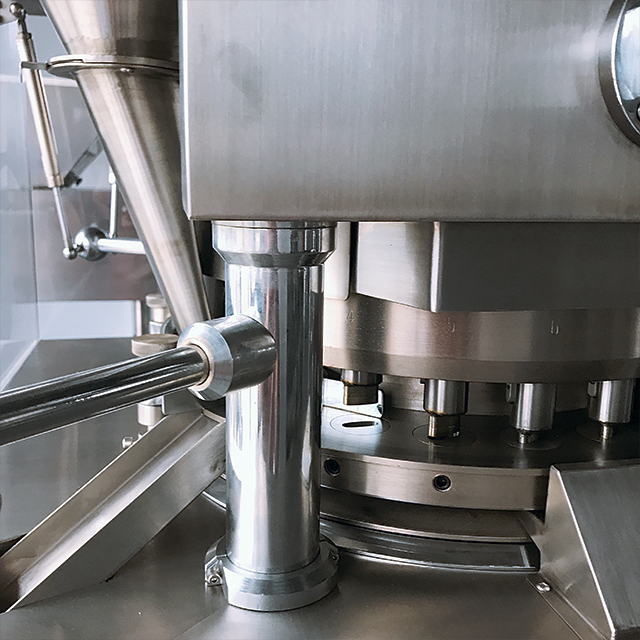

1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.3. It is adopts the import Frequency Timing with Electromagnetism Clutch.4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust
Main Technical Data:
| Stations (unit) | 31 | Thickness of the die (mm) | 28 |
| Maximum compression (KN) | 80 | The diameter of the circle of the central pitch of upper &lower punches on the turret | 320mm |
| Max. Diameter of tablet to be produced (mm) | 13 | Rotary speed of the turret (rpm) | 10-35 |
| Max. Filling depth (mm) | 15 | Capacity of the tablets (tablets/hour) | 150,000 |
| Max. Thickness of tablet (mm) | 6 | Area to occupy (mm 2 ) | 1500*1300*1650mm |
| Diameter of the upper/lower shank (mm) | 32 | Height of the machine (mm) | 1650 |
| Length of the upper shank (mm) | 175 | motor power (kw) | 3 |
| Length of the lower shank (mm) | 183 | Net weight of the machine (kg) | 1.8 |
| Diameter of the die (mm) | 36 |
