Home » Products » Tablet Press Machine » ZPS226D Series Double Color Rotary Tablet Press

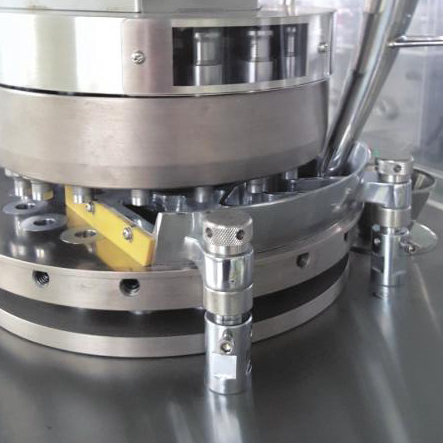

This machine is a kind of double pressure type automatic rotation, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical Industries
This machine is a kind of double pressure type automatic rotation, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical Industries.
Structure features
The outside part of the machine is fully- enclosed,and it is made of stainless steel ,meeting the GMP requirement.
It has transparent windows so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance is easier.
The machine can press not only round tablets but also different geometrical shape tablets,dou-ble- layered and Annular tablets the tablets may have the impressed letters on both sides.
All the controller and devices are in one side of the machine.so that it can be easier to operate.
A overload protection unit 1s included in th e system to avoid the damage of the punches and apparatus when Over load occurs.
The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service- life. Prevent Cross pollution.
技術參數 Technical parameters
|
參數 |
Data |
ZPS226D-16 |
|
沖模數 |
Dies (sets) |
16 |
|
最大壓力 |
Max Pressure (kn) |
60 |
|
最大預壓 |
Max-pre-pressure(kn) |
10 |
|
最大片徑 |
Max Dia.of Tablet (mm) |
13-16 |
|
第一層充填深度 |
First layer Depth of Filling (mm) |
7 |
|
第二層充填深度 |
Second layer Depth of Filling (mm) |
0.5-8 |
|
轉臺轉速 |
Rotate Speed (r/min) |
4-12 |
|
生產能力 |
Production Capacity (pc/h) |
11520 |
|
電 壓 |
Voltage(v/Hz) |
220/380 |
|
功 率 |
Motor Power (kw) |
2.2 |
|
外形尺寸 |
Overall Size (mm) |
1627x965x810 |
|
重 量 |
Weight (kg) |
850 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Tablet Equipment is a double press automatic rotation can be equipped with force-feeding system for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Learn More

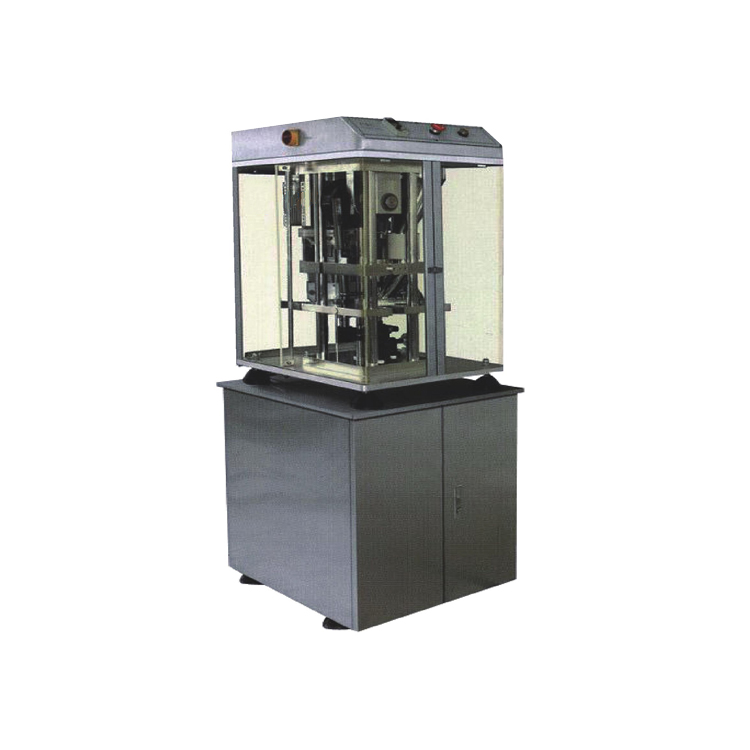

This model is a IPDT single station press that is specially designed for used in labo ratory of production in small batches. It can press all kinds of granular materials into round tablets. The machine can be equipped with one unit of punch an die with both the filling depth an thickness of the tablet adiustable . The oute rappearance of the machine is well designed with a compact structure. It features a number of advantages such as reasonable layout, small dimension and large pressure. It is a small size equipment that Compliance with GMP requirements.
Learn More

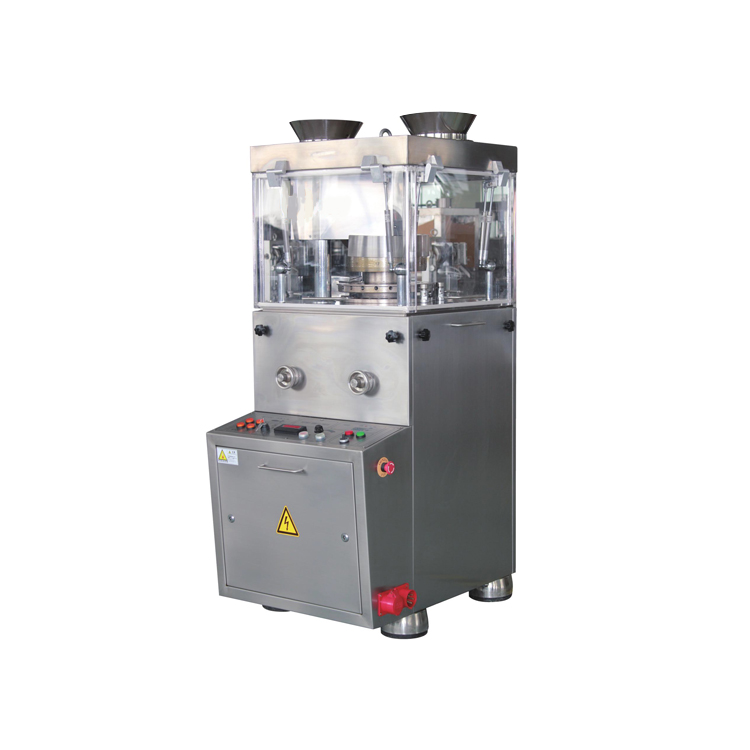

This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Learn More

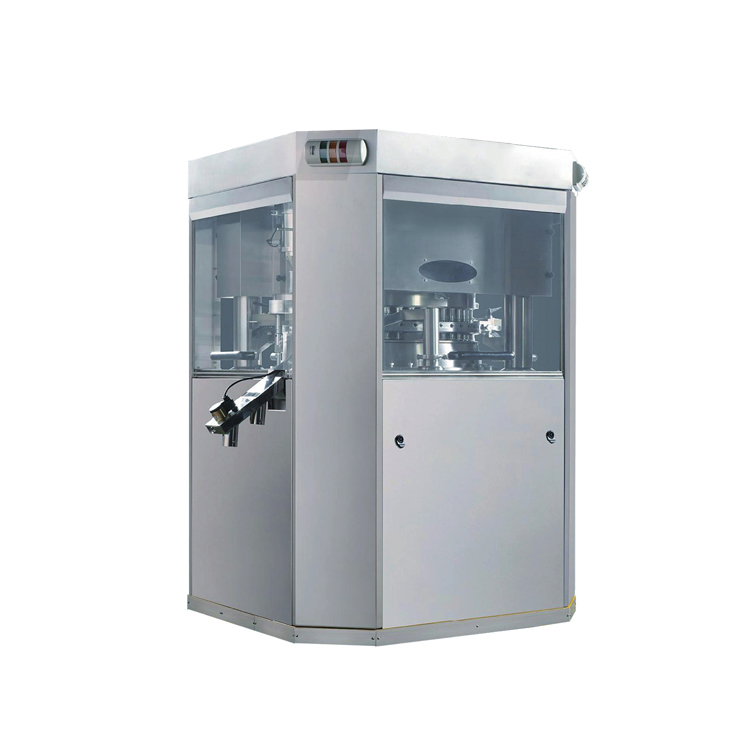

GZPK660 double discharge high-speed rotary tablet press is designed with double forced feeding and double discharge structure. The process of filling, metering, pre pressing, main pressing and tablet discharging is completed twice a week by rotating the punching plate. The equipment has stable working performance, stable machine operation and low noise. Replace one set of guide rail, press double-layer piece.
