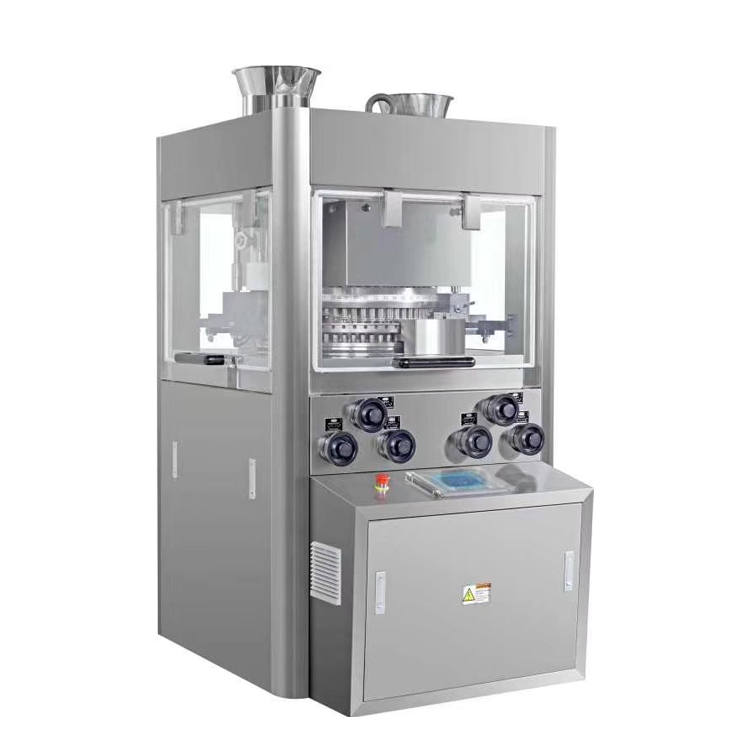

Tablet Equipment is a double press automatic rotation can be equipped with force-feeding system for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Tablet Equipment is a double press automatic rotation can be equipped with force-feeding system for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.
2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
3. It is adopts the import Frequency Timing with Electromagnetism Clutch.
4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust
| Stations (unit) | 31 | Thickness of the die (mm) | 22 |
| Maximum compression (KN) | 80 | The diameter of the circle of the central pitch of upper &lower punches on the turret | 320mm |
| Max. Diameter of tablet to be produced (mm) | 25 | Rotary speed of the turret (rpm) | 14-35 |
| Max. Filling depth (mm) | 20 | Capacity of the tablets | 60,000-100,000pcs |
| Max. Thickness of tablet (mm) | 12 | Area to occupy (mm2 ) | 2230x2250 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Gzpk620 double discharge high-speed rotary tablet press is designed with double forced feeding and double discharge structure. The process of filling, metering, pre pressing, main pressing and tablet discharging is completed twice a week by rotating the punching plate. The maximum output can reach 580000 tablets / hour. The equipment has stable working performance, stable machine operation and low noise. Replace one set of guide rail, press double-layer piece.
Learn More
The machine is a single press type,continuous automatic tablet press machine for pressing granular raw materials into tablets.Rotary tablet press is mainly used in pharmaceutical,chemical,food electronic, plastic and metallurgical industries.Machine for precision machined stainless steel made of aluminum alloy bracket for the upper and lower independent
Learn More
GZPK660 double discharge high-speed rotary tablet press is designed with double forced feeding and double discharge structure. The process of filling, metering, pre pressing, main pressing and tablet discharging is completed twice a week by rotating the punching plate. The equipment has stable working performance, stable machine operation and low noise. Replace one set of guide rail, press double-layer piece.
