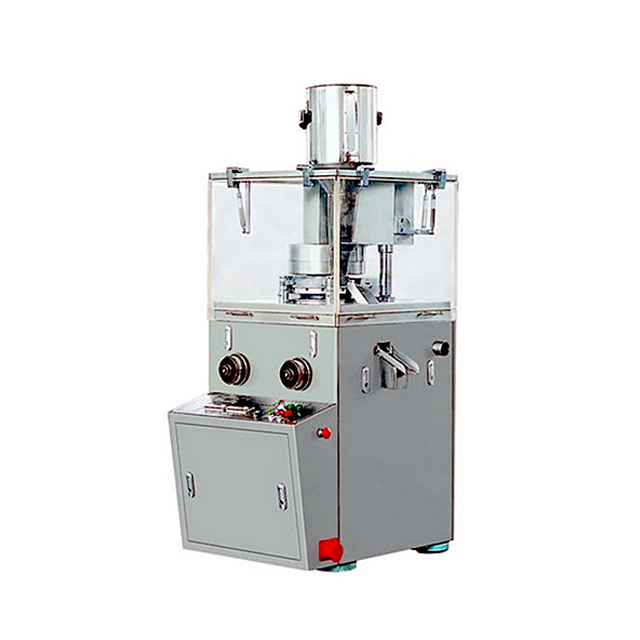

This machine is a single-press type, continuous automatic tablet press for pressing the granular raw material into the round tablets and irregular tablets etc. It is especially caters for small-batch production.This machine is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.In addition, it is equipped with the overload protection devices. The powder absorbing box is installed on one side of the machine. It can absorb the powder from the operation of the machine via suction port to avoid bonding and clogging, and it also can recycle the raw material for reproduction.
Product Description:
This machine is a single-press type, continuous automatic tablet press for pressing the granular raw material into the round tablets and irregular tablets etc. It is especially caters for small-batch production.This machine is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.In addition, it is equipped with the overload protection devices. The powder absorbing box is installed on one side of the machine. It can absorb the powder from the operation of the machine via suction port to avoid bonding and clogging, and it also can recycle the raw material for reproduction.
Main Feature:
1. Design of GMP
2. High quality all stainless steel constructions.
3. Reliable safety sealing system and dust-proof system.
4. High visibility isolated door to prevent cross contamination.
5. Easily remove parts for quick machine`s maintenance
| Model | ZP-31D |
|
Stations (unit) |
31 |
|
Maximum compression (KN) |
80 |
|
Max. Diameter of tablet to be produced (mm) |
25 |
|
Max. Filling depth (mm) |
15 |
|

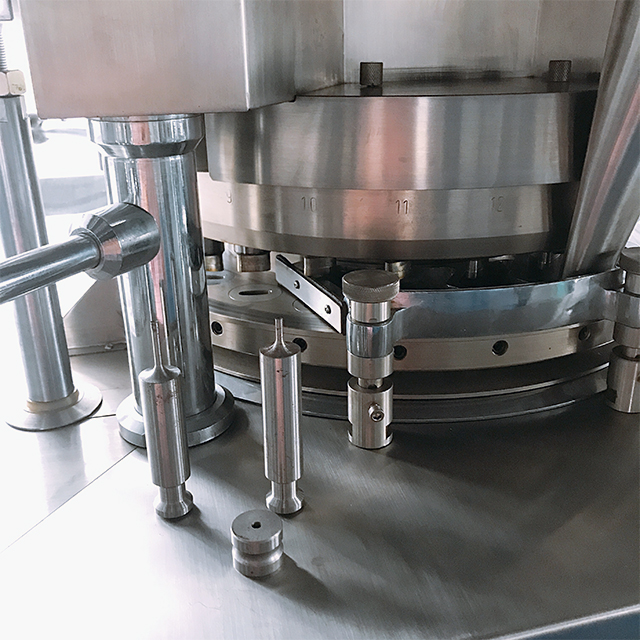

The diameter of the circle of the central pitch of upper &lower punches on the turret |
320mm |
|
Capacity of the tablets (max ten thousand tablets/hour) |
60,000-93,000pcs |
|
Area to occupy (mm 2 ) |
930x950 |
