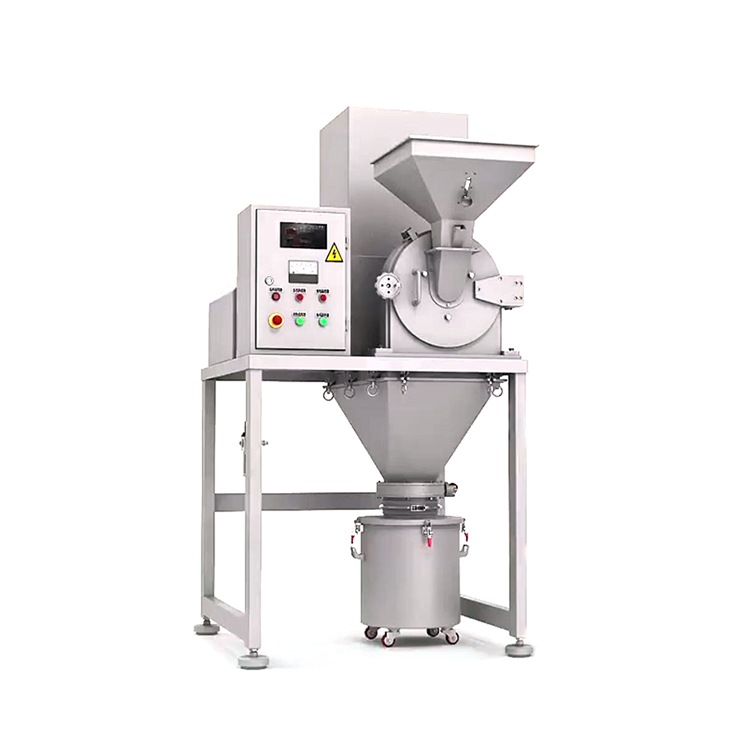

Home » Products » Fine crusher » Model B Series Dust Collecting Crushing Set（2011）
Applied for such trades as pharmaceutical, chemical and foodstuff ect., this machine is a new generation crushing equipment combining crushing and dust collection as a whole.
Main Application
Applied for such trades as pharmaceutical, chemical and foodstuff ect., this machine is a new generation crushing equipment combining crushing and dust collection as a whole.
Working principle
By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. The crushed material enters
into the catcher automatically under the effect of rotating centrifugal force, and the air cylinder is controlled by the pulse to shake the catcher, thus the dust collected by the catcher can
fall to the bin automatically. Designed according to the new GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the
utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.
Model
Production Capacity
Feeding Size
Spindle Speed
Crushing Fineness
Crushing motor
Dust collecting motor
15BIV.V.VI
10-50kg/h
6mm
6000r/min
20-120mesh
2.2kw
0.55kw
20BIV.V.VI
60-150kg/h
6mm
4500r/min
20-120mesh
4kw
1.5kw
30BIV.V.VI
100-400kg/h
10mm
3800r/min
20-120mesh
5.5kw
1.5kw
40BIV.V.VI
160-1000kg/h
12mm
3400r/min
20-120mesh
11kw
1.5k
