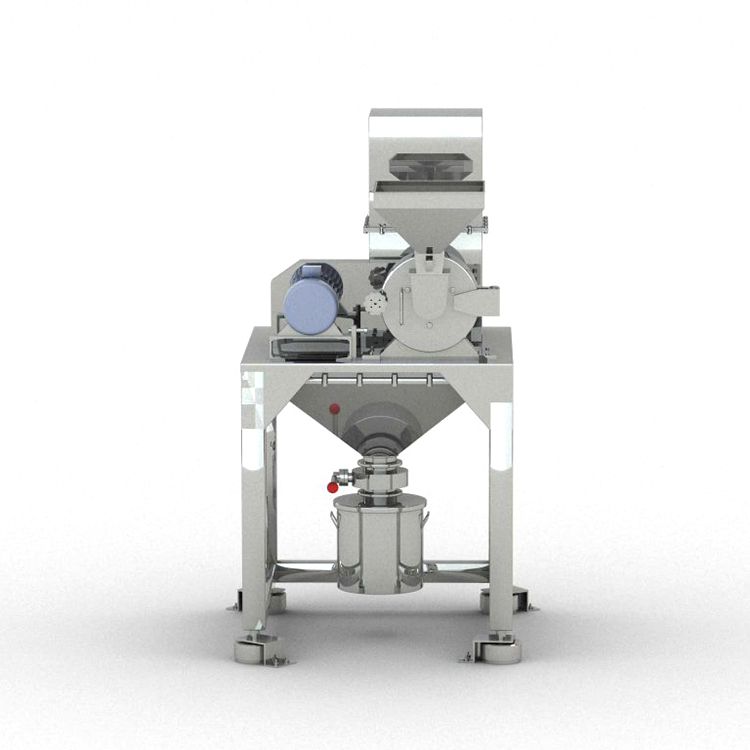

Home » Products » Fine crusher » WF Series Platform-type Dust Collecting Fine Crusher Set（2011）
Applied for such trades as pharmaceutical, chemical and foodstuff ect., this machine is a new generation crushing equipment combining crushing and dust collection as a whole.
Main Application
Applied for such trades as pharmaceutical, chemical and foodstuff ect., this machine is a new generation crushing equipment combining crushing and dust collection as a whole.
Working principle
This machine is a hammer typed crusher with high speed. The material is fed into the crushing chamber through a hopper by a conveyor and crushed by high speed rotating hammer.
The crushed material is enters into the catcher automatically under the effect of rotating centrifugal force, and the air cylinder is controlled by the pulse to shake the catcher, thus the
dust collected by the catcher can fall to the bin automatically. Designed according to the new GMP standard and wholly made of stainless steel, this machine has no flying dust during
production. And can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.
Model
Production Capacity
Feeding Size
Crushing Fineness
Crushing motor
Feeding motor
Dust collecting motor
WF–180B
30-80kg/h
≤1mm
80-400mesh
2.2kw
0.18kw
1.5kw
WF-320B
100-300kg/h
≤5mm
80-400mesh
11kw
0.18kw
1.5kw
