Home » Products » Fine crusher » GF Series dust collecting crushing set
This set is applied for such trades as pharmaceutical, foodstuff, chemical and so on. which is specially used for crush for crushing materials with much fiber or grease.
Main Application:
This set is applied for such trades as pharmaceutical, foodstuff, chemical and so on. which is specially used for crush for crushing materials with much fiber or grease.
Working principle:

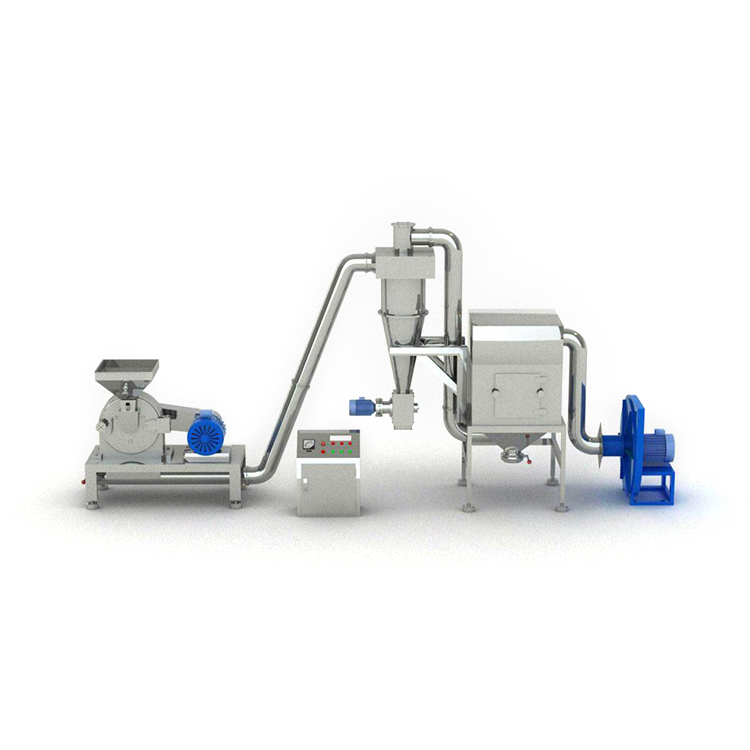

This machine is made up of crusher, cyclone separator, pulse dust-collecting box etc., Material come into the chamber through the hopper, and crushed by high speed
rotating hammers, crushed size can be adjust by screen. The crushed material flows into the cyclone separator by the induced fan and rotating centrifugal force, then being discharged
through gate blower,dust come into the pulse dust-collecting box, filtrated and recycled by the filter cylinder. Designed by the standard of GMP, the whole machine is made of stainless
steel, and there is no dust during the process of production.
Model
Production Capacity
Feeding Size
Crushing Fineness
Crushing motor
Dust collecting motor
Discharge motor
overall dimension
weight
GF-250
50-150kg/h
≤6mm
60-200mesh
5.5kw
2.2kw
0.75kw
3000*880*2150mm
550kg
GF-350
80-500kg/h
≤6mm
60-200mesh
11kw
4kw
0.75kw
3500*880*2150mm
880kg
GF-450
100-600kg/h
≤10mm
60-200mesh
22kw
5.5kw
0.75kw
4500*880*2250mm
1500kg
GF-650
150-1200kg/h
≤12mm
60-200mesh
37kw
11kw
1.5kw
6580*1100*2380mm
2000kg
GF-850
200-2000kg/h
≤15mm
60-200mesh
55kw
15kw
1.5kw
7800*1100*2380mm
2800kg
