 Home » Products » Drying machine » LTDG-Series CE Certified High Quality vacuum tray dryer

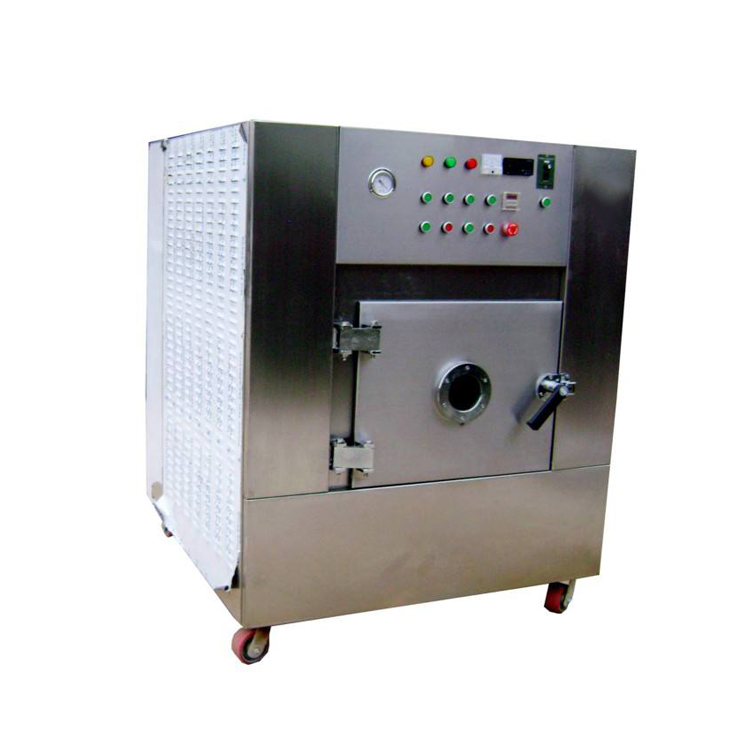

LTDG-Series CE Certified High Quality vacuum tray dryer

The Dry case is designed according to vacuum vessel of international standard. Case shape is horizontal cylinder. Exterior has multitasked stiffener to strengthen. Test the vacuum air impermeability after welding. Silicone rubber is used to seal between the drying case and the case door. Sight glass with light is set on the door. Hanger rail is set on the drying case to take the products get in and out.

Product Description



The Dry case is designed according to vacuum vessel of international standard. Case shape is horizontal cylinder. Exterior has multitasked stiffener to strengthen. Test the vacuum air impermeability after welding. Silicone rubber is used to seal between the drying case and the case door. Sight glass with light is set on the door. Hanger rail is set on the drying case to take the products get in and out.

Structure horizontal cylinder with stiffener Design standard vacuum vessel design
Material: SUS or Q235A Leakage rate 25Pa×L/S (depend on Clients requirement)



Technical Data


Freeze Drying machine

Unit

Production for Batch

LTDG-1

LTDG-50

LTDG-75

LTDG-100

Nominal Area

m2

1

50

75

100

Capacity

Area of the heat shelf

m2

1.08

59.9

89.9

110.1

Tray Area



1.02

50.2

75.8

101

Tray Size

mm

780*510*37

Pallet No.*Skip



6pcs*1

64pcs*2

64pcs*

64*4

Total Volume Dehydration (Max

Kg/batch

15

1000

1500

2000

Basic Parameter

Heating Shelf

Width

mm

540

Length

mm

1630

3260

4890

6520

Number



17*2

Volume of Drying Library

m

2200*4760

2200*7390

2200*10020

2200*12650

Heat Mode



Radiation







Heating Shelf Space



75

Heating Shelf Range

°C

Room Temperature-120°C

Heating Shelf Cooling rate

°C/min

≥5°C/min

Heating Shelf heating rate

°C/min

≥3°C/min

Condenser Lowest Temperature

°C

≤-45°C

System Lowest Pressure

Pa

≤13.3

Pumping Rate

min

10.01*105Pa-133Pa≤15min

Basic Supply

Cooling Water qty: ≤30°C, 0.15-0.2MPa

m3/hr

0.9

30

48

68

Total Power

kw

8

75

100

160

Steam Consumption

L/hr

220(100)

450(200)

670(280)

900(340)

Compressed air consumption:07-1.0Pa.0.9

L/hr

0.45

Water Consumption: 50°C, 0.10-0.20MPa

kg/batch

5

10

10

15

Nominal Area

m2

1

50

75

100

Matching Cold Storage

Cooling Water qty: ≤30°C, 0.15-0.2Pa

m3/hr

0.9

8

10

13

Total Power

kw

8

12

19

23
