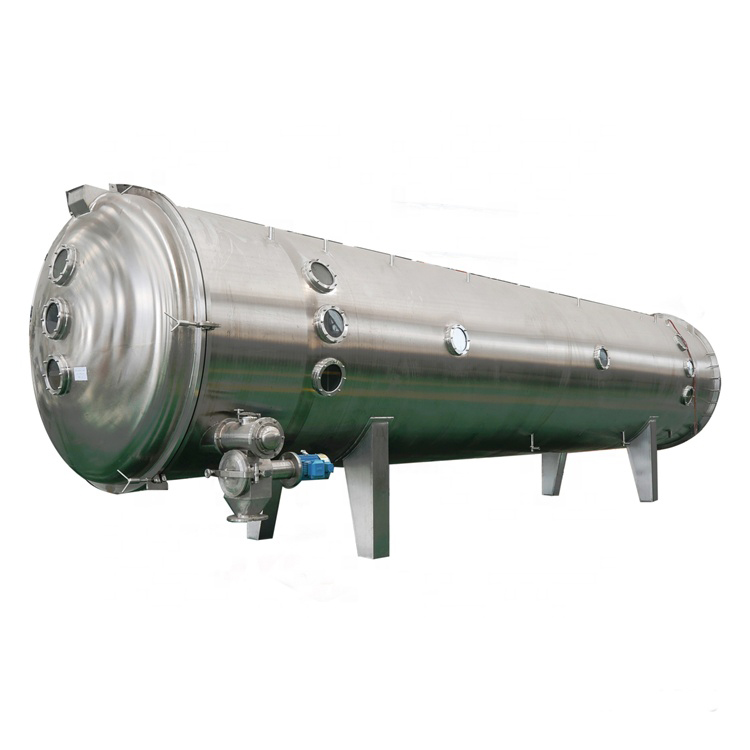

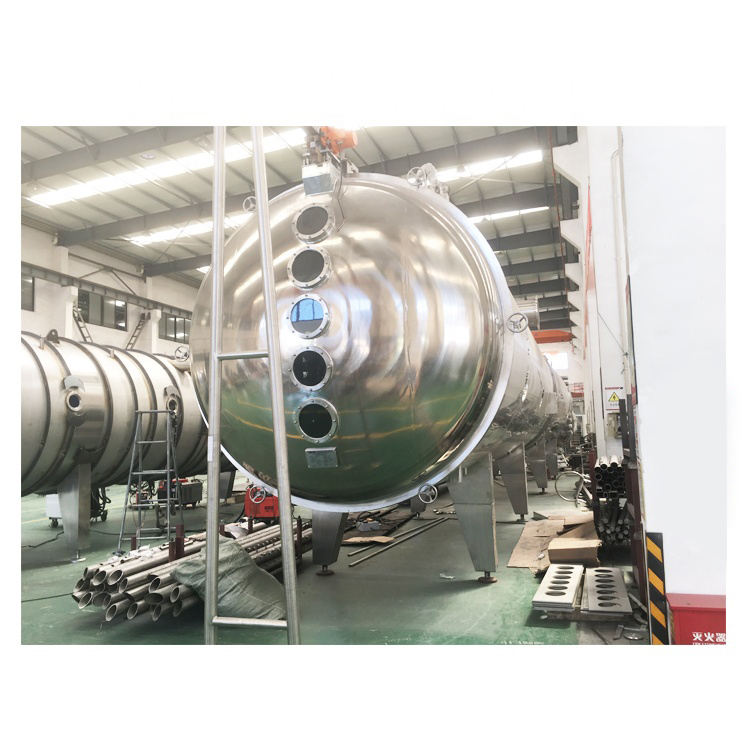

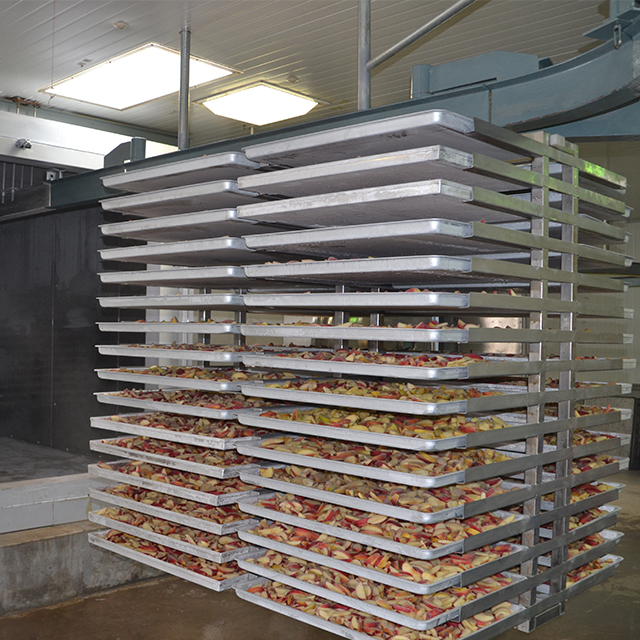

The Dry case is designed according to vacuum vessel of international standard. Case shape is horizontal cylinder. Exterior has multitasked stiffener to strengthen. Test the vacuum air impermeability after welding. Silicone rubber is used to seal between the drying case and the case door. Sight glass with light is set on the door. Hanger rail is set on the drying case to take the products get in and out.
The Dry case is designed according to vacuum vessel of international standard. Case shape is horizontal cylinder. Exterior has multitasked stiffener to strengthen. Test the vacuum air impermeability after welding. Silicone rubber is used to seal between the drying case and the case door. Sight glass with light is set on the door. Hanger rail is set on the drying case to take the products get in and out.
****Structure horizontal cylinder with stiffener Design standard vacuum vessel design
****Material: SUS or Q235A Leakage rate 25Pa×L/S (depend on Clients requirement)
|
Freeze Drying machine |
Unit |
Production for Batch |
||||||
|
LTDG-1 |
LTDG-50 |
LTDG-75 |
LTDG-100 |
|||||
|
Nominal Area |
m2 |
1 |
50 |
75 |
100 |
|||
|
Capacity |
Area of the heat shelf |
m2 |
1.08 |
59.9 |
89.9 |
110.1 |
||
|
Tray Area |
|
1.02 |
50.2 |
75.8 |
101 |
|||
|
Tray Size |
mm |
780*510*37 |
||||||
|
Pallet No.*Skip |
|
6pcs*1 |
64pcs*2 |
64pcs* |
64*4 |
|||
|
Total Volume Dehydration (Max |
Kg/batch |
15 |
1000 |
1500 |
2000 |
|||
|
Basic Parameter |
Heating Shelf |
Width |
mm |
540 |
||||
|
Length |
mm |
1630 |
3260 |
4890 |
6520 |
|||
|
Number |
|
17*2 |
||||||
|
Volume of Drying Library |
m |
2200*4760 |
2200*7390 |
2200*10020 |
2200*12650 |
|||
|
Heat Mode |
|
Radiation |
|
|
|
|||
|
Heating Shelf Space |
|
75 |
||||||
|
Heating Shelf Range |
°C |
Room Temperature-120°C |
||||||
|
Heating Shelf Cooling rate |
°C/min |
≥5°C/min |
||||||
|
Heating Shelf heating rate |
°C/min |
≥3°C/min |
||||||
|
Condenser Lowest Temperature |
°C |
≤-45°C |
||||||
|
System Lowest Pressure |
Pa |
≤13.3 |
||||||
|
Pumping Rate |
min |
10.01*105Pa-133Pa≤15min |
||||||
|
Basic Supply |
Cooling Water qty: ≤30°C, 0.15-0.2MPa |
m3/hr |
0.9 |
30 |
48 |
68 |
||
|
Total Power |
kw |
8 |
75 |
100 |
160 |
|||
|
Steam Consumption |
L/hr |
220(100) |
450(200) |
670(280) |
900(340) |
|||
|
Compressed air consumption:07-1.0Pa.0.9 |
L/hr |
0.45 |
||||||
|
Water Consumption: 50°C, 0.10-0.20MPa |
kg/batch |
5 |
10 |
10 |
15 |
|||
|
Nominal Area |
m2 |
1 |
50 |
75 |
100 |
|||
|
Matching Cold Storage |
Cooling Water qty: ≤30°C, 0.15-0.2Pa |
m3/hr |
0.9 |
8 |
10 |
13 |
||
|
Total Power |
kw |
8 |
12 |
19 |
23 |
|||
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
The vacuum freeze drying machine is an advanced method for the material for the material de-watering. It has been very famous for its good results and special capturing water alternatively. It freezes the moisture material in the low temperature and makes the water inside sublimate directly in the vacuum condition. Then it collects the sublimated vapor by means of the condensing way so as to dewater and dry the material.
Learn More
It’s applied for drying and dehumidification of material in such trades as pharmaceutical, chemical foodstuff, light industry, heavy industry etc., as well as heating and dehumidification of product, including raw medicines, original medicines, doses, traditional Chinese medicine tablet, powder, granulate, electuary, ball packing bottle, pigment, dyestuff, dried vegetable, food, plastic resin, electric clement and baking finish etc.
Learn More
The Dry case is designed according to vacuum vessel of international standard. Case shape is horizontal cylinder. Exterior has multitasked stiffener to strengthen. Test the vacuum air impermeability after welding. Silicone rubber is used to seal between the drying case and the case door. Sight glass with light is set on the door. Hanger rail is set on the drying case to take the products get in and out.
Learn More
The Dry case is designed according to vacuum vessel of international standard. Case shape is horizontal cylinder. Exterior has multitasked stiffener to strengthen. Test the vacuum air impermeability after welding. Silicone rubber is used to seal between the drying case and the case door. Sight glass with light is set on the door. Hanger rail is set on the drying case to take the products get in and out.
