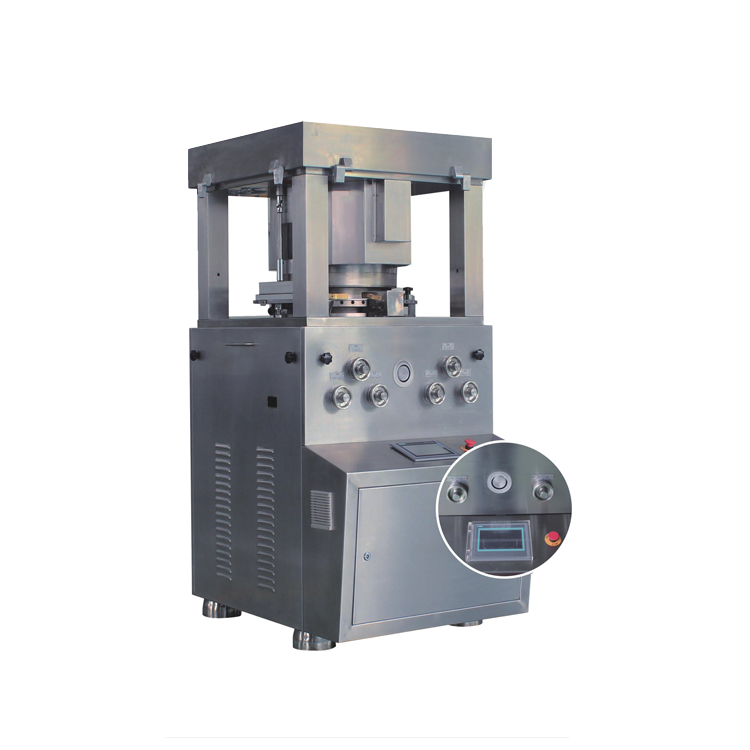

Home » Products » Tablet Press Machine » GZP420i Double Discharging Rotary Tablet Press
Equipment performance
Has a preloading function
Adopts PLC programmable control
Man-machine interface, easy to operate Shows the main pressure, fillling volume, slice thickness, speed, output
With overpressure alarm function
Using quantitative lubricating function
Feeding methods, forced feeder
Tablet pressing chamber meet GMP requirements
Technical parameters
|
參數 |
Data |
GZP29i |
GZP37i |
GZP39i |
GZP45i |
|
沖桿直徑 |
Punch Diameter (mm) |
26 |
22 |
22 |
10 |
|
最大壓片直徑 |
Max Tablet Diameter (mm) |
22 |
12 |
12 |
10 |
|
最大轉速 |
Max Rotation Speed (r/min) |
40 |
40 |
40 |
40 |
|
最大填充深度 |
Max Filling Depth (mm) |
18 |
18 |
18 |
18 |
|
最大產量 |
Max Production Capacity (pc/h) |
139200 |
177600 |
187200 |
216000 |
|
最大主壓力 |
Max Main Pressure (kn) |
80 |
80 |
80 |
80 |
|
最大預壓力 |
Max Pre- pressure (kn) |
15 |
15 |
15 |
15 |
|
主電機功率 |
Main Motor Power (kw) |
4KW |
4KW |
4Kw |
4Kw |
|
設備占地面積 |
Machine Area (mm) |
850x 1100 |
850x1100 |
850x 1100 |
850x1100 |
|
設備高度 |
Machine Height (mm) |
1750 |
1750 |
1750 |
1750 |
|
設備重量 |
Machine Weight (kg) |
2050 |
2050 |
2050 |
2050 |
