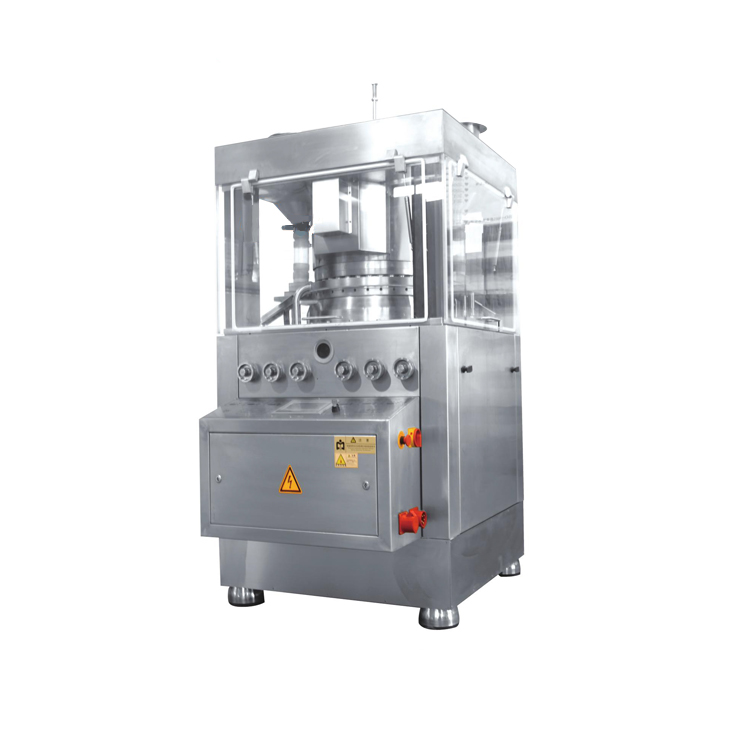

Home » Products » Tablet Press Machine » GZP-520i Double Discharging Rotary Table Press
Equipment performance
Contro lled by PLC Programme
Equip with self-lubrication system

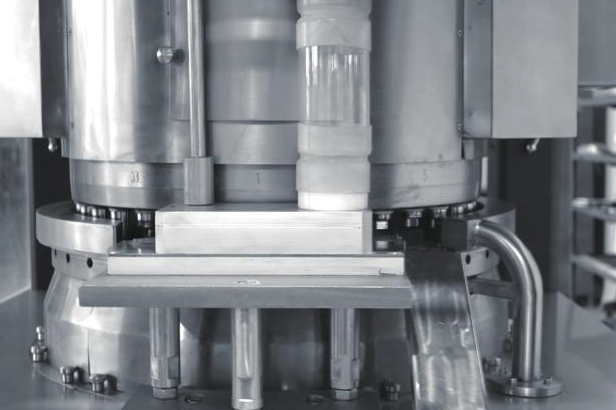

Tablets formed from powder by prepressing and main-pressing procedure
Double-forced feeding system
Tableting room is compliant with GMP standard
Technical parameters
|
參數 |
Data |
ZP55 |
ZP49 |
ZP41 |
ZP35 |
ZP47 |
ZP39 |
|
沖模數 |
Die number |
55 |
49 |
41 |
35 |
47 |
39 |
|
最大主壓片力 |
Maximum main tablet force(kn) |
100 |
|||||
|
最大預壓片力 |
Main pressure(kn) |
20 |
|||||
|
最大壓片直徑 |
Max tablet diameter(mm) |
13 |
18 |
||||
|
最大壓片厚度 |
Max Thickness of tablet(mm) |
8 |
6 |
||||
|
最大填充深度 |
Max Depth of filling (mm) |
18 |
15 |
||||
|
轉臺轉速 |
Rotate speed(r/m) |
5-40 |
|||||
|
生產能力 |
Out-put (p/h) |
264000 |
235000 |
196000 |
168000 |
225000 |
187200 |
|
沖模直徑 |
Tooling type |
BBS |
BB |
B |
D |
ZP22 |
ZP26 |
|
主電機功率 |
Main motor power |
7.5Kw |
|||||
|
外形尺寸 |
size |
1350 x 1040 x 2200 |
|||||
|
機器重量 |
Weight |
3900 |
|||||
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
The machine is a single press type,continuous automatic tablet press machine for pressing granular raw materials into tablets.Rotary tablet press is mainly used in pharmaceutical,chemical,food electronic, plastic and metallurgical industries.Machine for precision machined stainless steel made of aluminum alloy bracket for the upper and lower independent
Learn More
That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
