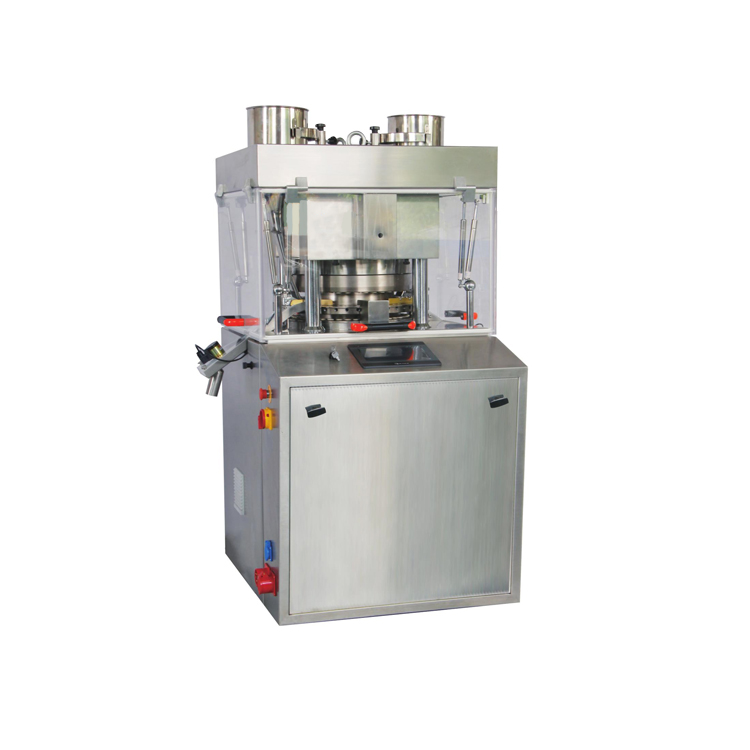

Home » Products » Tablet Press Machine » ZPSS226 Double Color Rotary Tablet Press
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Characteristics
The outside part of the machine is fully- enclosed, and it is made of stainless steel, meeting the G.M.P requirement .
It has transparent windows so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance is easier.
The machine can press not only round tablets but also different geometrical shape tablets, double- layered and annular tablets, the tablets may have the impressed letters on both sides.
All the controller and devices are located in one side of the machine, so that it can be easier to operate.
An overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload cccurs
The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, prevent cross pollution
Can be compressed double color tablets
技術參數 Technical parameters
參數
Data
ZPSS226-16
沖模數
Dies (sets)
16
最大壓力
Max Pressure (kn)
60
最大預壓
Max-pre-pressure(kn)
10
最大片徑
Max Dia.of Tablet (mm)
13-16
第一層充填深度
First layer Depth of Filling (mm)
7
第二層充填深度
Second layer Depth of Filling (mm)
0.5-8
轉臺轉速
Rotate Speed (r/min)
4-12
生產能力
Production Capacity (pc/h)
11520
電 壓
Voltage(v/Hz)
220/380
功 率
Motor Power (kw)
2.2
外形尺寸
Overall Size (mm)
1627x965x810
重 量
Weight (kg)
850
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materi-
als into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic
and metallurgical industries.

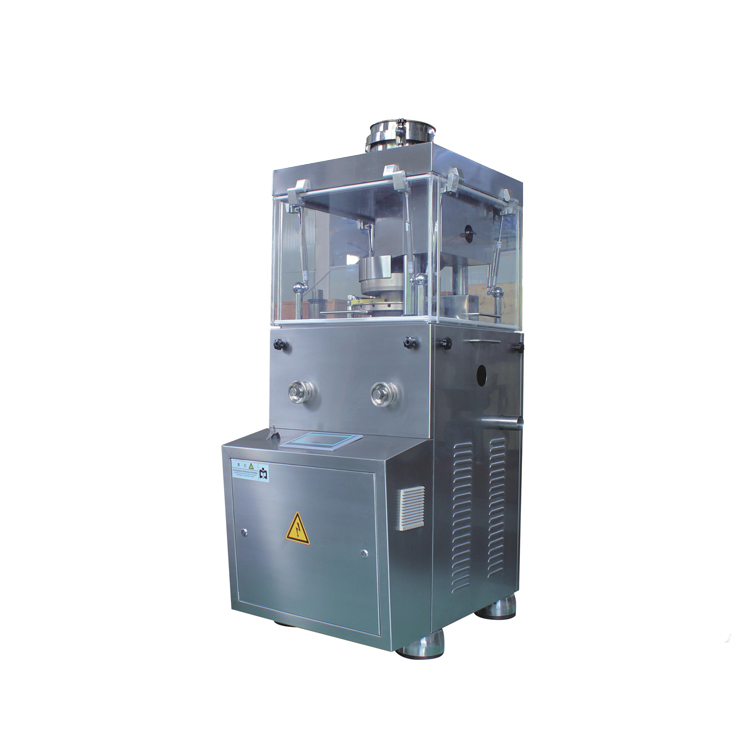

This model is a IPDT single station press that is specially designed for used in labo ratory of production in small batches. It can press all kinds of granular materials into round tablets. The machine can be equipped with one unit of punch an die with both the filling depth an thickness of the tablet adiustable . The oute rappearance of the machine is well designed with a compact structure. It features a number of advantages such as reasonable layout, small dimension and large pressure. It is a small size equipment that Compliance with GMP requirements.
