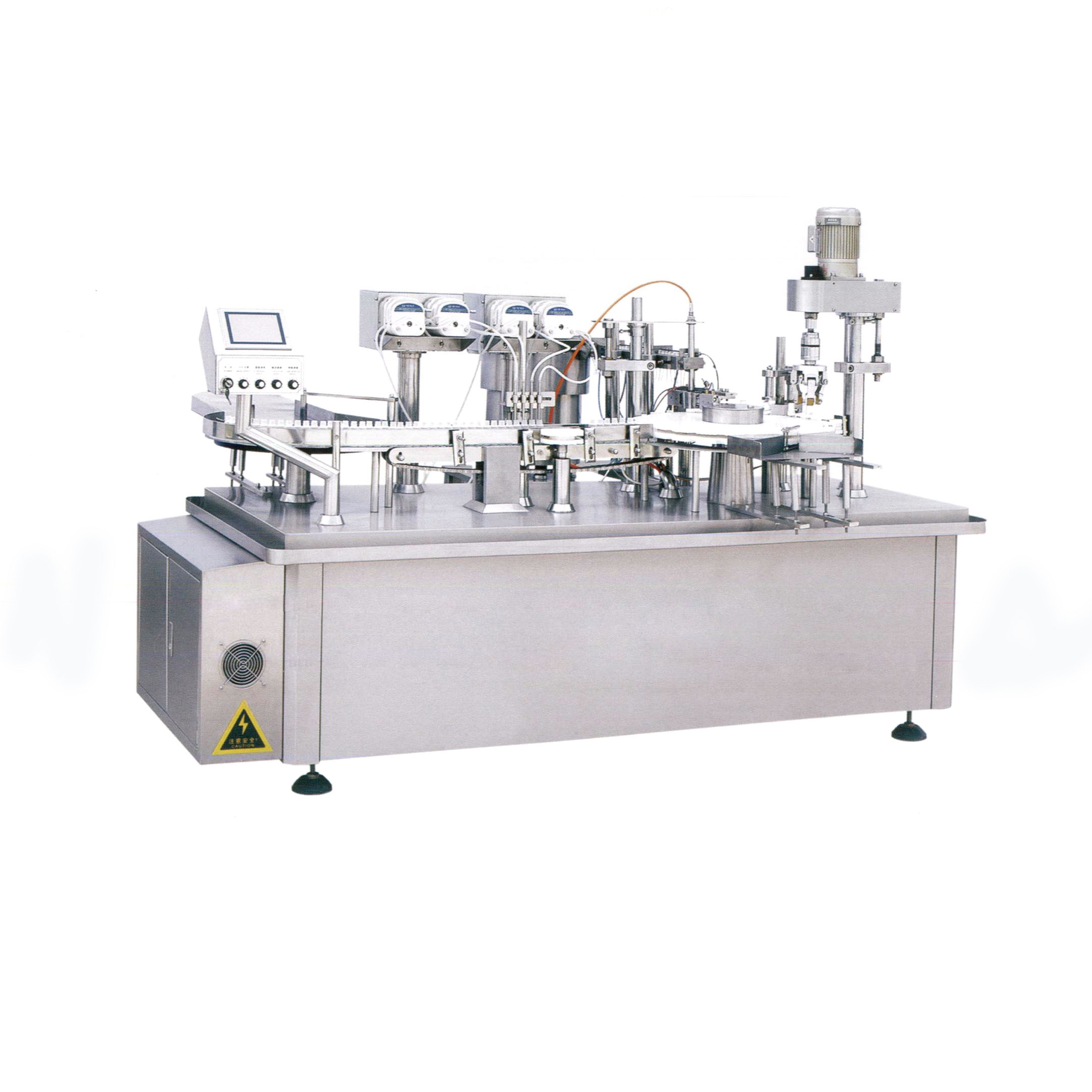

Home » Products » Liquid Filler » PYG4/1 Spray Filling and Capping Monobloc
Feature
u Adopt injection pump to fill high precision, large range of adjusting dosage.
u The pumpsystem don't absorb the medicament, good chemical stability,be able to resist high temperature and erosion.
u Low level liquid receiver, convenient to clean.
u Filling system has the function of shrinking, no drop leak.
u Apply to fill light liquid and water like.
u Special manipulator and guiding device are equipped on it to ensure the spray cap reliably fitted on the opening of container.
u Filling needle is diving bottom of bottle to fill and moving up slowly,avoid bubbling.
u Filling and sealing are in one body of the machine, economical and low space possessing.
u Flexible claw capping head, adjustable degree of tightness freely.
u The whole machine is designed according to requirements of GMP.
Main technical parameter
u Filling rang:≤500ml
u Filling precisiong:≤±1%
u Capacity:30-40瓶/分鐘
u Power supply:220V/380V 50Hz
u Rated power1.2Kw
u Net weight:650Kg
u Overall dimennsion:2440*780*1600（mm）
