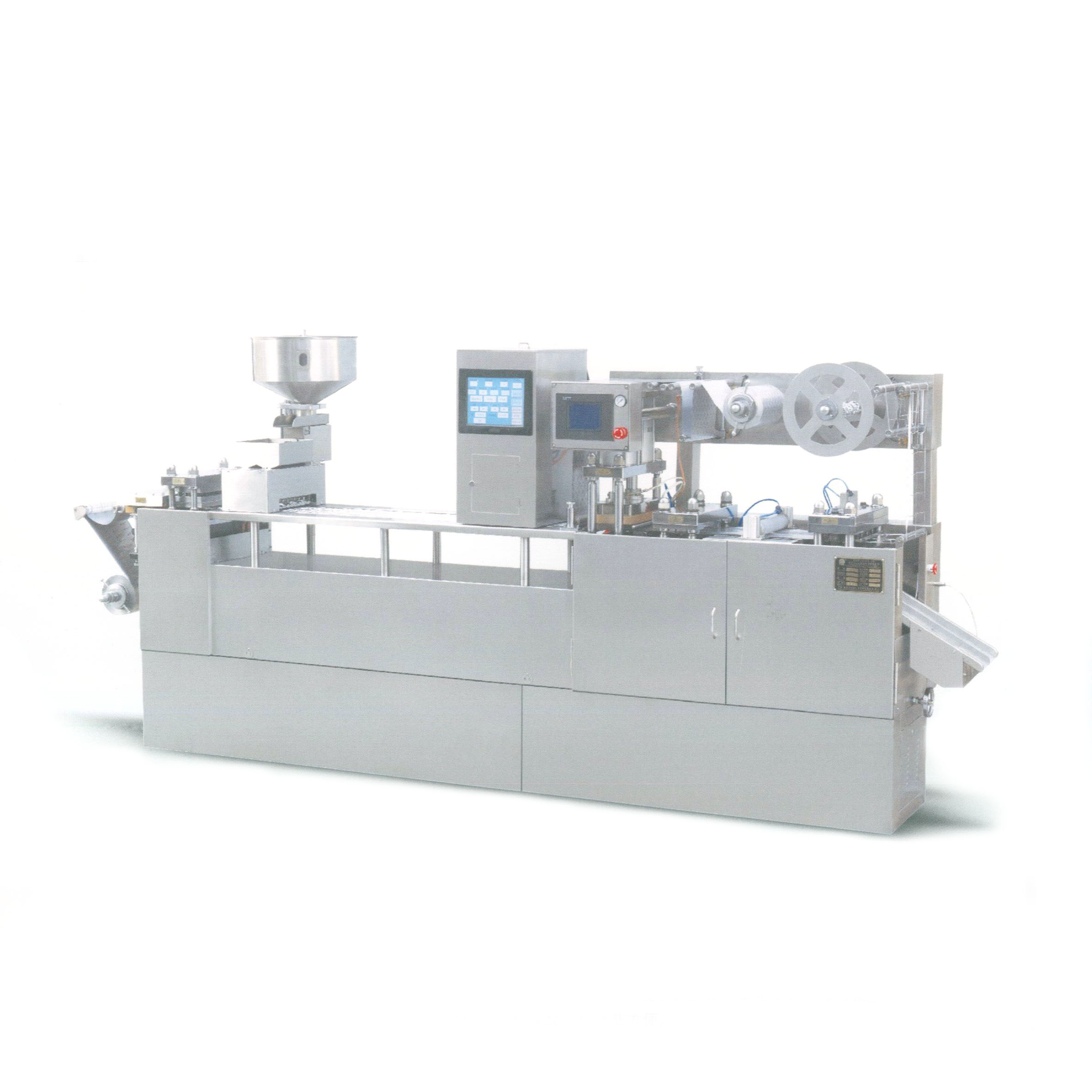

Home » Products » Blister Packing Machine » DPB-250S ALU/ALU Flat Plate Blister Packaging Machine
This machine integrated with hard ALU(PVC) forming, Automatic Feeding, PTP sealing, batch number printing,perforation,cutting, waste winding. It conforms to "GMP" requirement, suitable for ALU/ALU, ALU/PVC, PVC/Paper package.
Feature
u This high dispose Alu-Alu,Alu-PVC Blister Packing Machine innovated on the basis of Model Alu-alu Packaging Machine. High dispose, advanced steady, easy operation, is current leading model in Alu/Alu Blister Packing Machine in China.
u Human Interface, PLC Control, More intelligence.
u Main drive part adopts Germany Technology, servo motor drag, running steady and accurately, with lower noise.
u Cursor tarcking register function, sealing with tidiness and good-looking appearance.
u Double layer working table multi-alarm protection function, more humanization.
u On-line photography detection, powerful function, can automatic checking lack of product (bad tablet, empty capsule, half capsule), reject full sheet, the qualified rate can reach 100%
Main technical parameter
u Cutting frequency (times/min) :Hardness aluminum 15-40;AL-plastic/paper-plastic 15-60
u Capacity(10 thousand pcs/h):AL-AL≤11 AL-plastic≤23
u Max.forming area:AL-AL 240*150*14mm； AL-plastic 240*150*14（26）
u Stroke:40-160mm(can be manufactured as user's requirements)
u Standard plate:80*57mm(can be manufactured as user's requirements)
u Air pressure:0.4-0.6MPa
u Air supply:≥0.3m3/min
u Total power:380V/220V 50Hz 6.2Kw
u Main motor power:1.5Kw
u Forming Aluminum:0.085-0.1*260
u PVC hard pieces:0.15-0.5*260mm
u PTP aluminum foil:0.02-0.035*260mm
u Dialysis paper:50-100g*260mm
u Mould cooling:tap water or recycling water
u Machine overall size:3600*600*1600mm
u Machine Weight:1800kg
