該設備是集光、電、氣、機一體的高科技產品。適用于軟膏類藥品及軟包裝類自動包裝盒。其工作過程為物品的傳送；藥品說明書的傳送（可進行1-4折的自動折疊）；紙盒自動成形與傳送，將物料連帶折好的說明書同時裝入紙盒內；并自動完成打批號、兩端紙舌封口等繁雜的封裝過程。（可加熱熔膠機）
概述:
該設備是集光、電、氣、機一體的高科技產品。適用于軟膏類藥品及軟包裝類自動包裝盒。其工作過程為物品的傳送；藥品說明書的傳送（可進行1-4折的自動折疊）；紙盒自動成形與傳送，將物料連帶折好的說明書同時裝入紙盒內；并自動完成打批號、兩端紙舌封口等繁雜的封裝過程。（可加熱熔膠機）。
適用范圍:

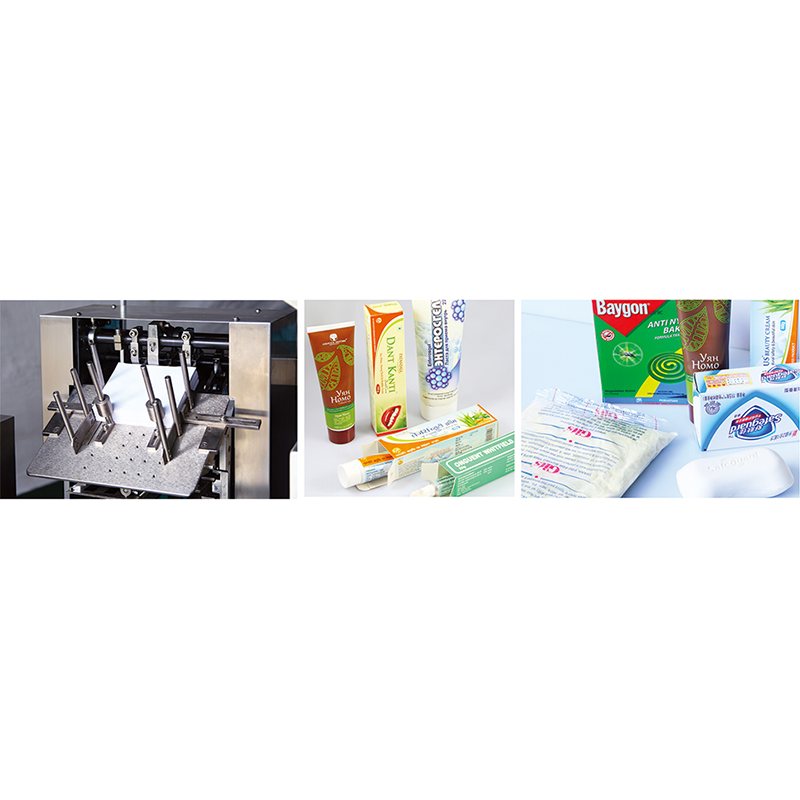

茶葉袋、香皂、冰激凌、五金用品、牙膏、軟膏、奶酪、條狀袋子、枕包袋等類似物品
特點:
PLC自動控制系統、變頻調速，電器元件均采用國際知名品牌。
采用人機界面操作系統。
機械過載自動停機。
自動剔除缺包裝物和說明書的紙盒。
故障顯示、報警和成品計數。
性能穩定、操作簡便易懂。
主要技術參數：
|
主要技術參數 Main Technical Data |
ZH-120(立式Vertical) |
|
|
裝盒速度Speed |
30-120盒/分box/min |
|
|
紙 盒 Carton |
質量要求Quality |
250-350g/m2【視紙盒大小而定Customized】 |
|
尺寸范圍Size |
(65-155)mm×(30-85)mm×(15-50)mm |
|
|
說 明 書 Leaflet |
質量要求Quality |
60-70g/m2 |
|
未折疊尺寸范圍Size |
(80-250)mm×(90-170)mm |
|
|
折疊范圍Folding Time |
【1-4】折Fold |
|
|
壓縮空氣 Compressed Air |
工作壓力Pressure |
≥0.6Mpa |
|
耗 氣 量Consumption |
120-160L/min |
|
|
電 源Power |
220V 50Hz |
|
|
主電機功率Main Motor Power |
0.75kw |
|
|
外形尺寸Overall Dimension |
2300mm×1140mm×1800mm |
|
|
整機凈重Weight |
約1200kg |
|
