This machine is applicable for mixing of powdery and granulate material in pharmaceutical, chemical foodstuff, ligh industry, electronic, mining and metallurgy, national defense industry and scientific research institutes.
Main Application:
This machine is applicable for mixing of powdery and granulate material in pharmaceutical, chemical foodstuff, ligh industry, electronic, mining and metallurgy, national defense industry and scientific research institutes.
Working principle:

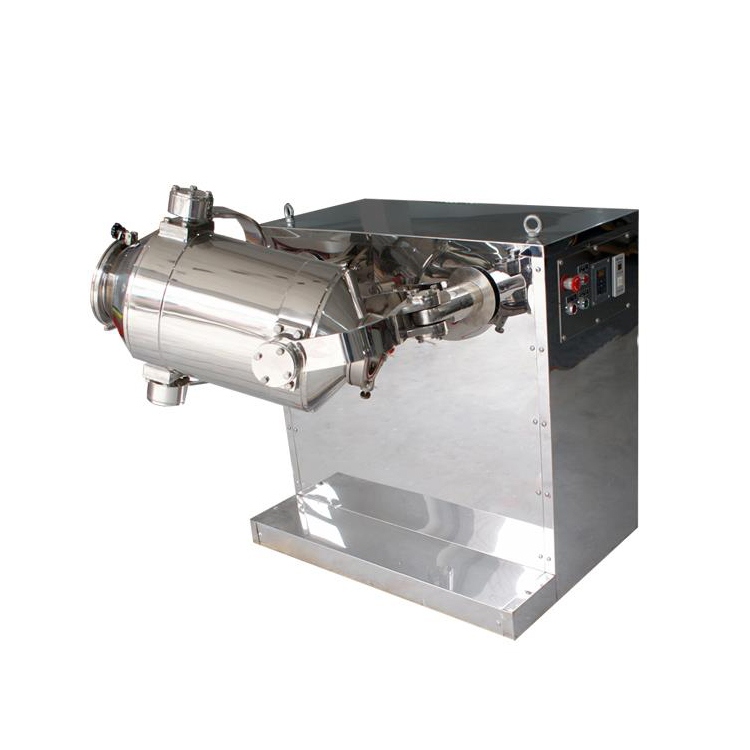

This machine is composed of base, governor motor shaft, rotary connecting rod and barrel etc., material barrel is driven by the positive shaft to make complex movement including horizontal move, rotation and roiling etc, which makes the material moved to 3 directions along the barrel, therefore, highly uniform mixing of various material is realized. This machine is a kind of full closed high effcient energy saving mixer without germ and dust. When he material is being mixed, no centrifugal force effect and situation of gravity segregation and laminar accumulation are occurred. In addition, it has larger loading capacity, short mixing time and high efficiency.
Model
Barrel volume
Max loading volume
Max loading weigh
Mixing time
Spindle speed
Motor power
Overall dimension
Weight
SWH-10
10L
7L
7kg
0-99min
0-22r/min
0.18kw
640*620*55mm
150kg
SWH-25
25L
18L
18kg
0-99min
0-15r/min
0.55kw
900*900*75mm
150kg
SWH-50
50L
40L
40kg
0-99min
0-15r/min
0.75kw
970*950*120mm
300kg
SWH-100
100L
75L
75kg
0-99min
0-15r/min
1.5kw
1200*1600*1500mm
500kg
SWH-200
200L
160L
160kg
0-99min
0-15r/min
2.2kw
1400*1800*1600mm
800kg
SWH-400
400L
320L
320kg
0-99min
0-12r/min
4kw
1700*2100*1850mm
1200kg
SWH-600
600L
480L
480kg
0-99min
0-11r/min
5.5kw
2100*2400*2250mm
1500kg
SWH-800
800L
640L
640kg
0-99min
0-10r/min
7.5kw
2200*2500*2300mm
2000kg
SWH-1000
1000L
800L
800kg
0-99min
0-10r/min
7.5kw
2280*2600*2500mm
2500kg
SWH-1200
1200L
950L
950kg
0-99min
0-10r/min
11kw
2400*2800*2550mm
2800kg
SWH-1500
1500L
1200L
1200kg
0-99min
0-10r/min
15kw
2500*3100*2600mm
3000kg
SWH-2000
2000L
1600L
1600kg
0-99min
0-9r/min
18.5kw
2800*3600*3200mm
3800kg
