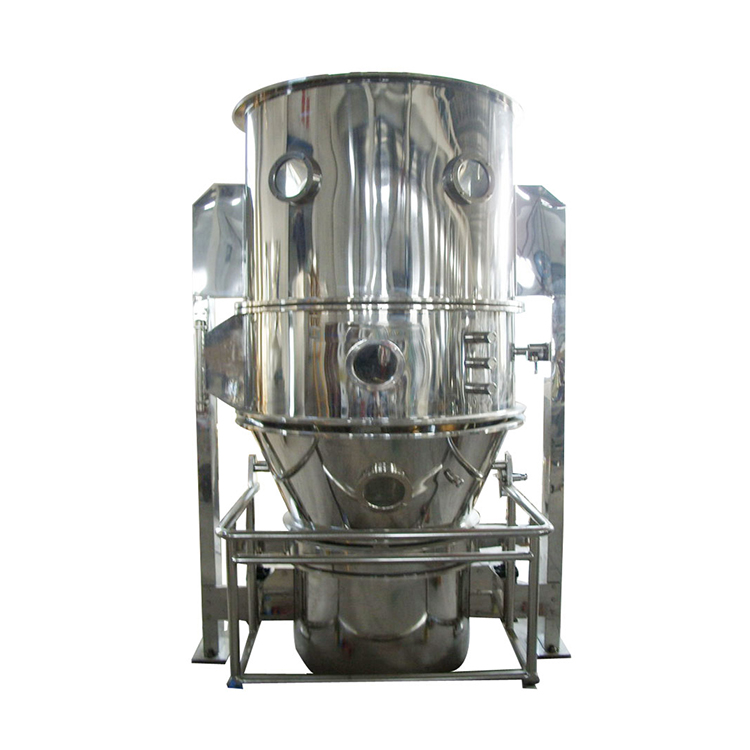

The PGL80 fluid dry bed granulator is suitable for Chinese traditional medicine granule, such as capsule and no or low sugar and tablet or coating of granule.
Multi-fluid nozzle. Particularly it is suitable for material that contains component of amylase and has strong viscosity or heat sensitive product
The structure of spraying drying chamber, filtering chamber, fluid-bed and secondary air supply system has been improved greatly.
Applications:
The PGL80 fluid dry bed granulator is suitable for Chinese traditional medicine granule, such as capsule and no or low sugar and tablet or coating of granule.
Multi-fluid nozzle. Particularly it is suitable for material that contains component of amylase and has strong viscosity or heat sensitive product
The structure of spraying drying chamber, filtering chamber, fluid-bed and secondary air supply system has been improved greatly.
Features:
It can appear the features of spraying drying deeply
Designed and manufactured laid out by GMP
Can realize continuous spraying process of immersed paste
Simple and reliable operation
Improve spraying and drying efficiency
Compared with FL, the fluid-bed is more constant and the adjusted air amount is more
reasonable. The drying degree is improved and the "died bed" is overcome
Technical data:
|
Specification item |
80 |
|
Container of material |
670L |
|
Liquid speed: |
60-100kg/h |
|
Specific gravity of liquid |
<1.3kg/L |
|
(0.6MPa) Consumption of steam |
300kg/h |
|
(0.6MPa) Compressive air |
1.3cbm/minAuxiliary fan: 1.5kW |
|
Main fan |
22kW |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
The PGL80 fluid dry bed granulator is suitable for Chinese traditional medicine granule, such as capsule and no or low sugar and tablet or coating of granule.
Multi-fluid nozzle. Particularly it is suitable for material that contains component of amylase and has strong viscosity or heat sensitive product
The structure of spraying drying chamber, filtering chamber, fluid-bed and secondary air supply system has been improved greatly.
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Learn More
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Learn More
1.Drying for wet granules and powder materials of screw extruded granules, swaying granules, high-speed mixing granulation in the fields such as Pharmacy, food, feed, chemical industry and so on.
2.Large granules, small block, viscous block granular materials.
3.The materials such as Konjak, polyacry lamide and so on , which will have the volume changed during drying.
